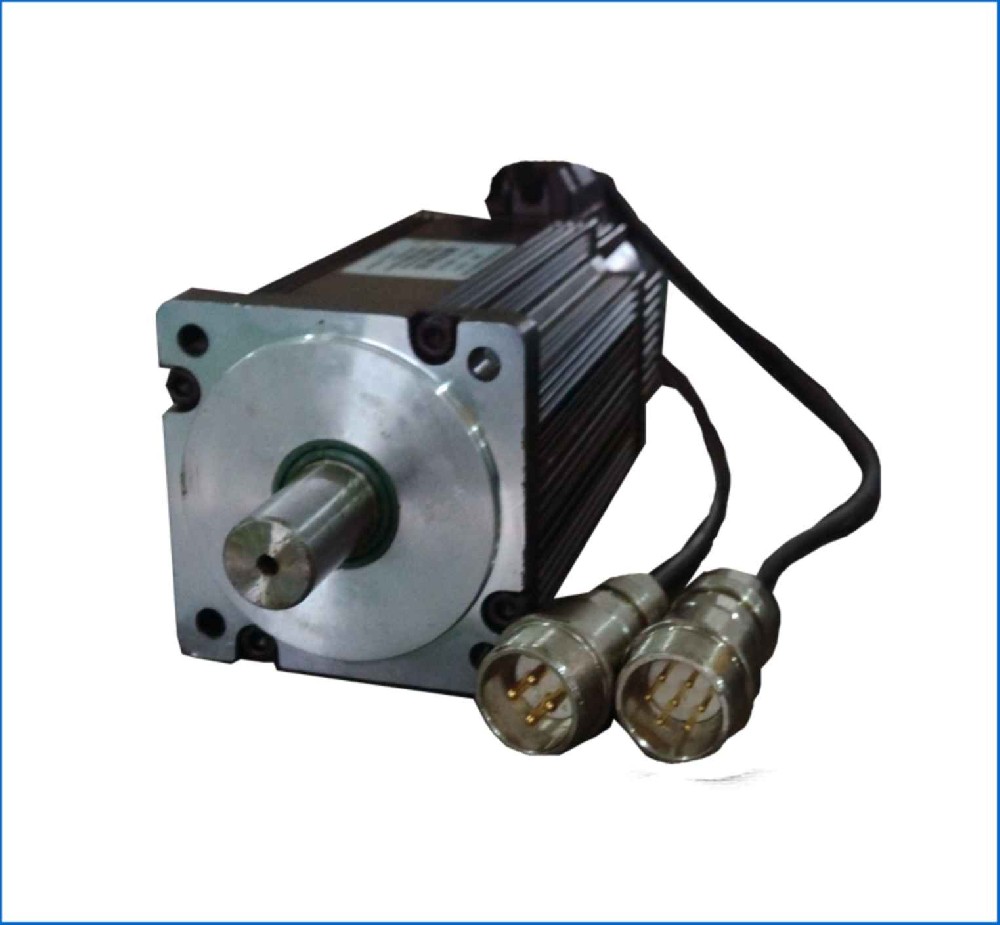

LME Servo Motor Frame Size 80 (220V)

LME Servo Motor Frame Size 80 (220V)

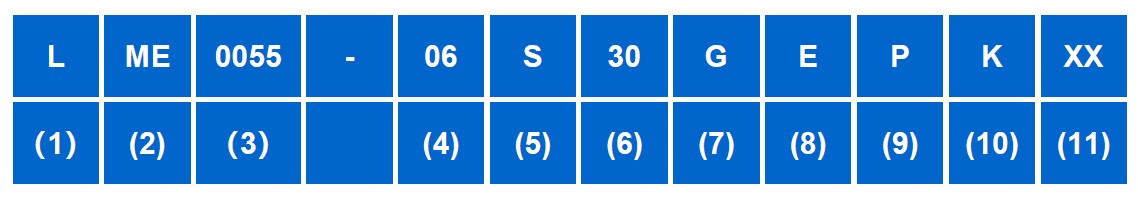

LME Series Servo Motor Order Number

LME Order Number.jpg

  (1)     RATED VOLTAGE (VAC),  L, 220 / H, 380
  (2)     PRODUCT SERIES
  (3)     RATED POWER, THE FOUR-DIGIT NUMBER×0.01kW
  (4)     FRAME SIZE, THE DOUBLE-DIGIT NUMBER×10
  (5)     PRODUCT TYPE,  S, STANDARD / C, CUSTOMIZED
  (6)     RATED SPEED, THE DOUBLE-DIGIT NUMBER×100RPM
  (7)     MAXIMUM SPEED FEATURE
  (8)     ENCODER CODE
  (9)     OPTIONS,  B, WITH THE HOLDING BRAKE / O, WITH THE OIL SEAL
  (10)   THE SHAFT END KEYWAY CODE,  K, WITH THE KEY AND TAP
  (11)   RESERVED

Product Description

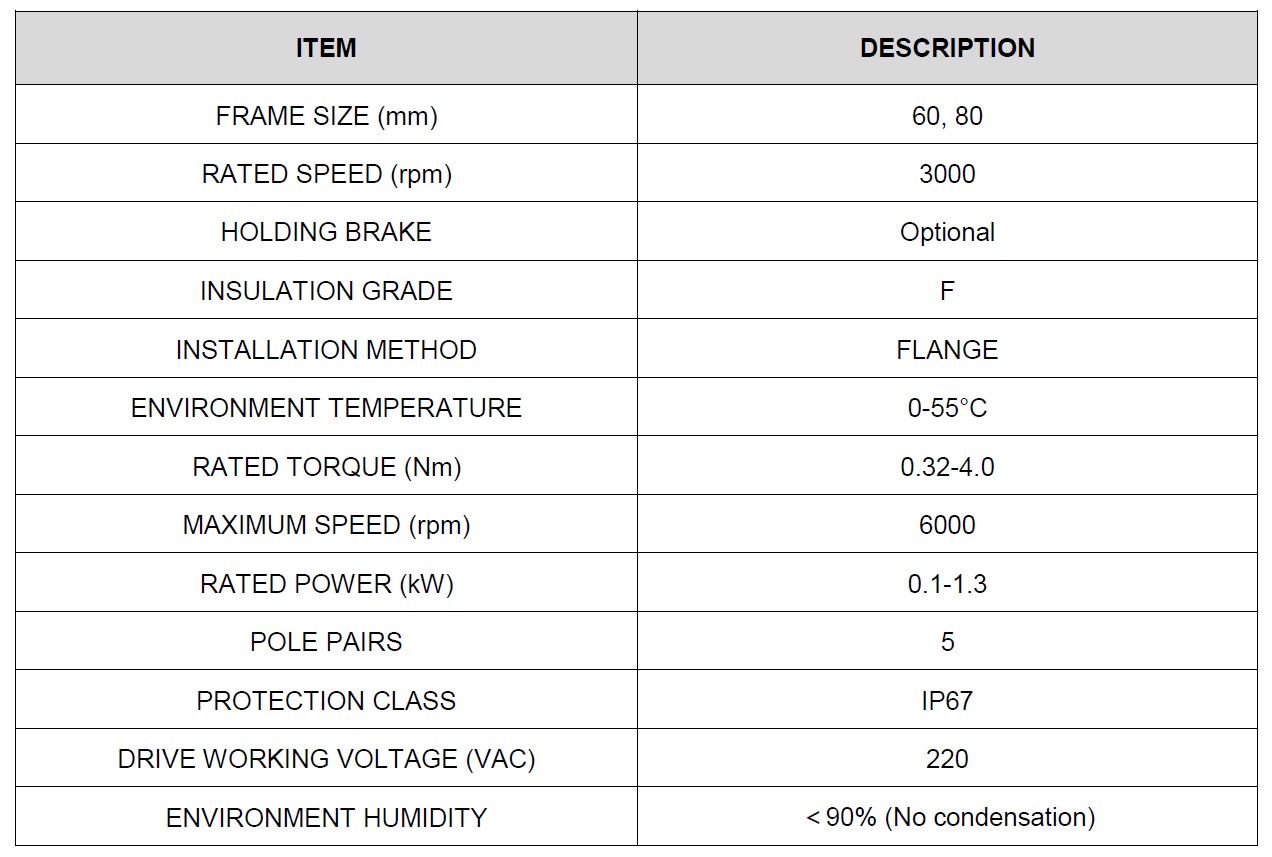

LME Series Servo Motor Features

LME Feature.jpg

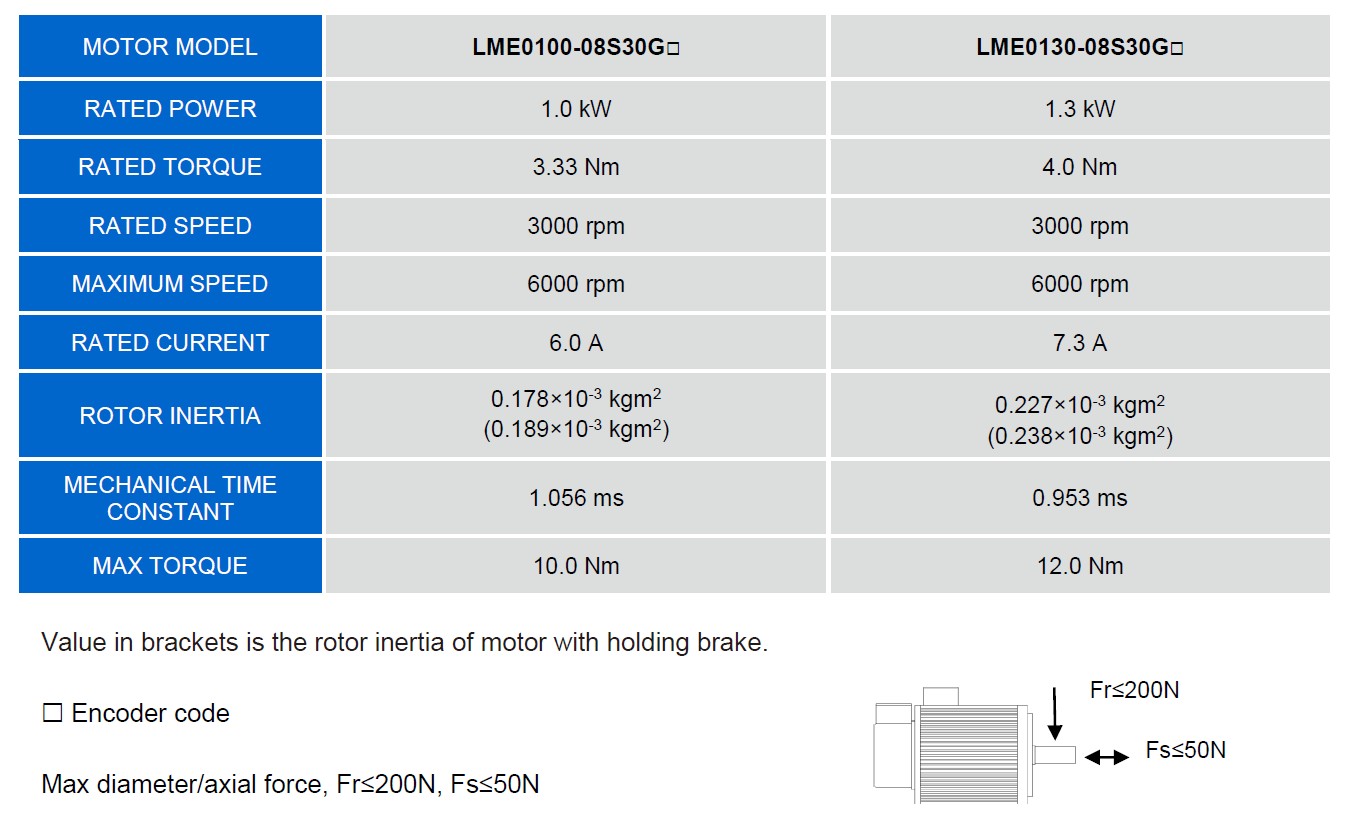

Frame Size 80 3000RPM/6000RPM

LME Dimension 01.jpg

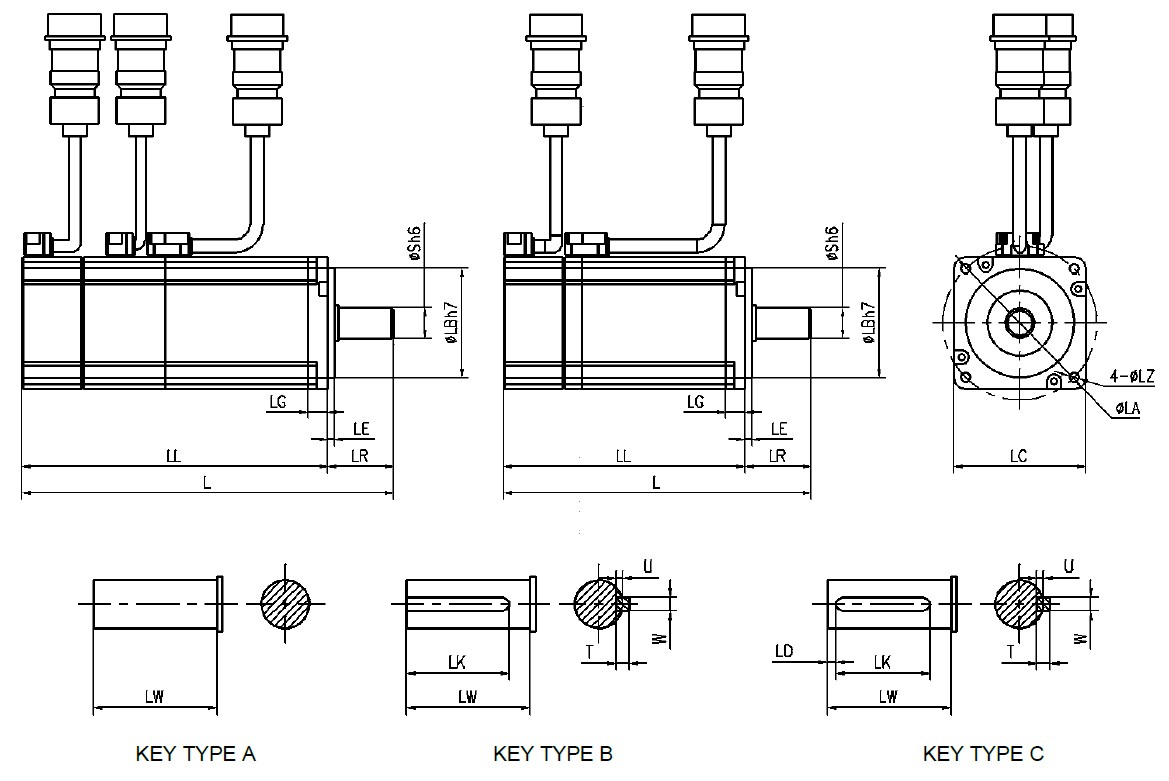

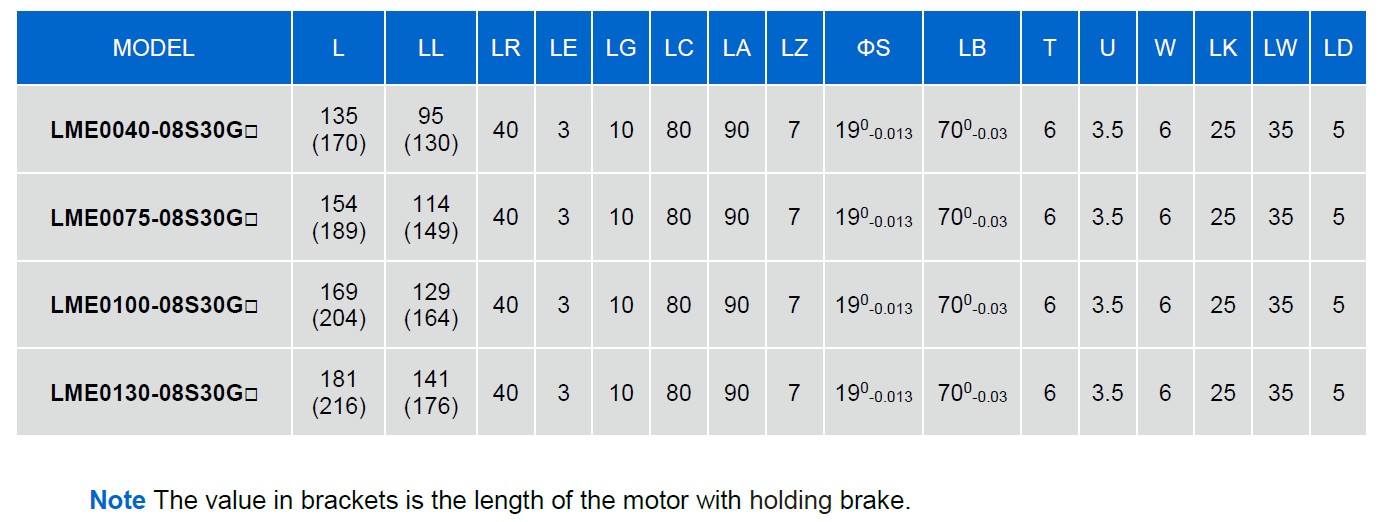

Outline Dimensional Drawing (mm)

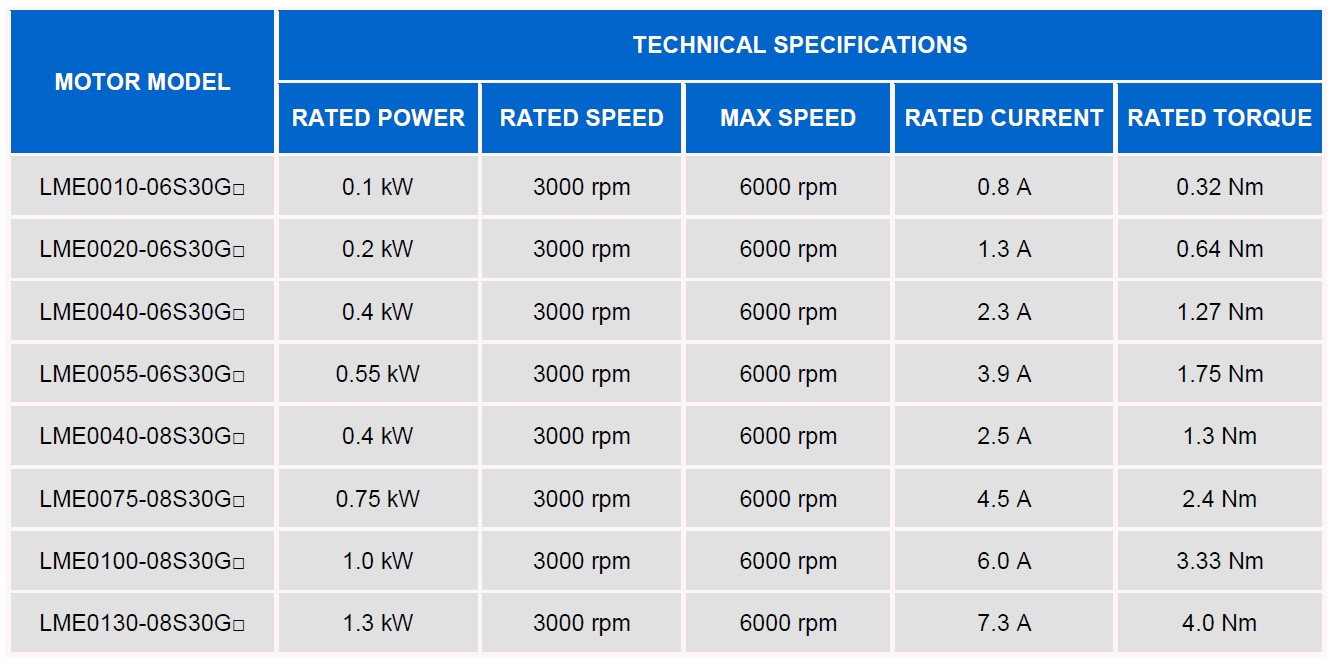

LME Series Servo Motor List

LME List.jpg
