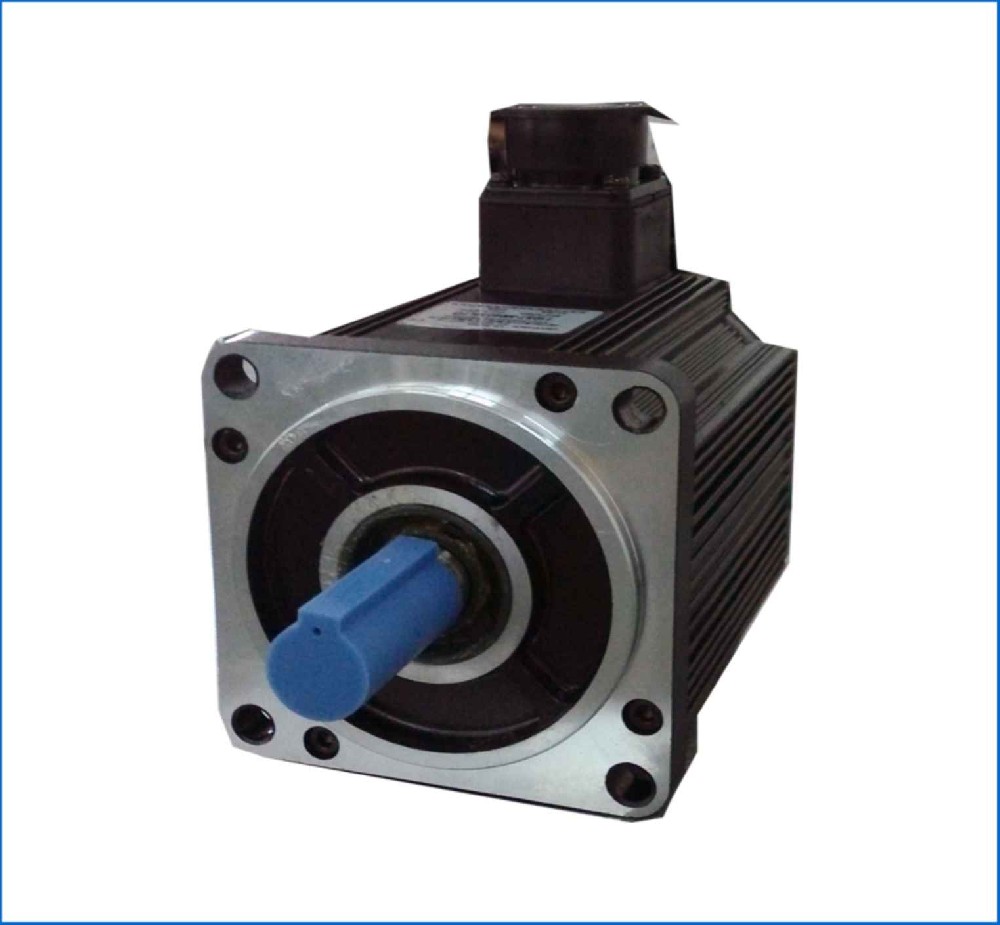

LM Servo Motor Frame Size 130 (220V)

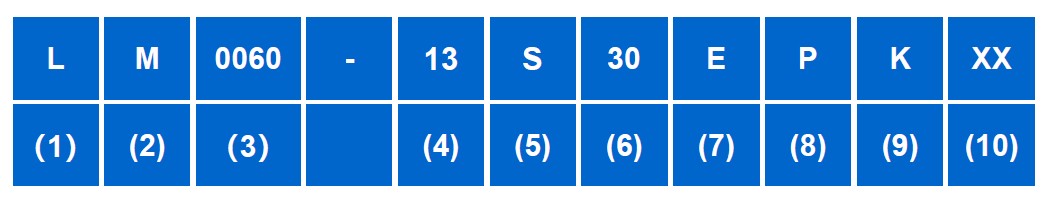

LM Series Servo Motor Order Number

  (1)     RATED VOLTAGE (VAC),  L, 220 / H, 380
  (2)     PRODUCT SERIES
  (3)     RATED POWER, THE FOUR-DIGIT NUMBER×0.01kW
  (4)     FRAME SIZE, THE DOUBLE-DIGIT NUMBER×10
  (5)     PRODUCT TYPE,  S, STANDARD / C, CUSTOMIZED
  (6)     RATED SPEED, THE DOUBLE-DIGIT NUMBER×100RPM
  (7)     ENCODER CODE
  (8)     OPTIONS,  B, WITH THE HOLDING BRAKE / O, WITH THE OIL SEAL
  (9)     THE SHAFT END KEYWAY CODE,  K, WITH THE KEY AND TAP
  (10)   RESERVED
