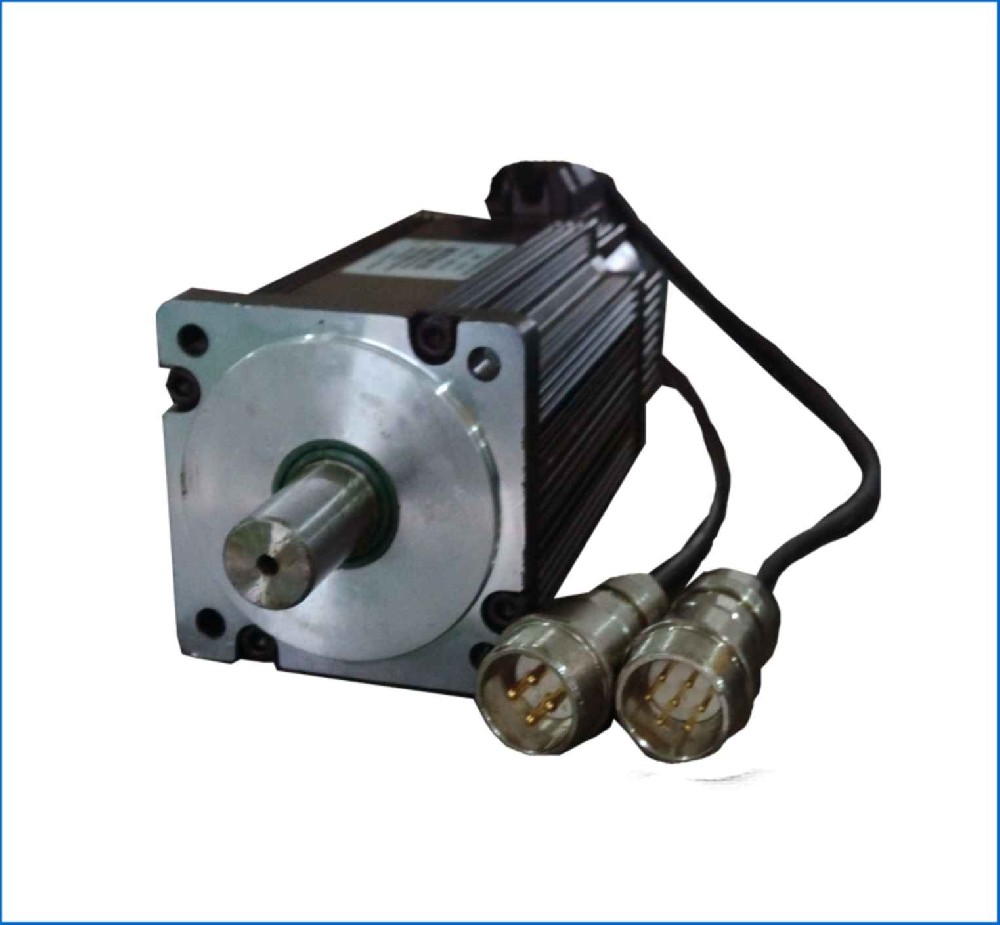

HME Servo Motor Frame Size 80 (380V)

HME Servo Motor Frame Size 80 (380V)

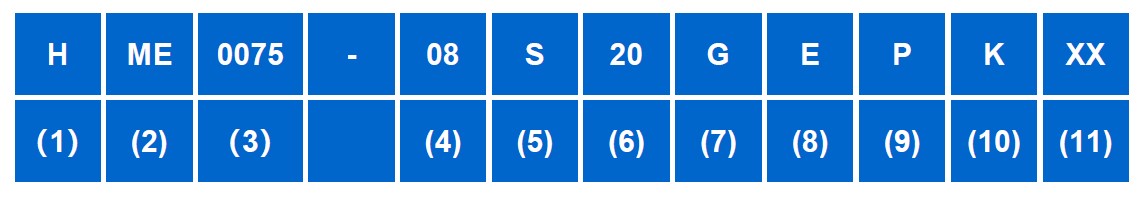

HME Series Servo Motor Order Number

HME Order Number.jpg

  (1)     RATED VOLTAGE (VAC),  L, 220 / H, 380
  (2)     PRODUCT SERIES
  (3)     RATED POWER, THE FOUR-DIGIT NUMBER×0.01kW
  (4)     FRAME SIZE, THE DOUBLE-DIGIT NUMBER×10
  (5)     PRODUCT TYPE,  S, STANDARD / C, CUSTOMIZED
  (6)     RATED SPEED, THE DOUBLE-DIGIT NUMBER×100RPM
  (7)     MAXIMUM SPEED FEATURE
  (8)     ENCODER CODE
  (9)     OPTIONS,  B, WITH THE HOLDING BRAKE / O, WITH THE OIL SEAL
  (10)   THE SHAFT END KEYWAY CODE,  K, WITH THE KEY AND TAP
  (11)   RESERVED

Product Description

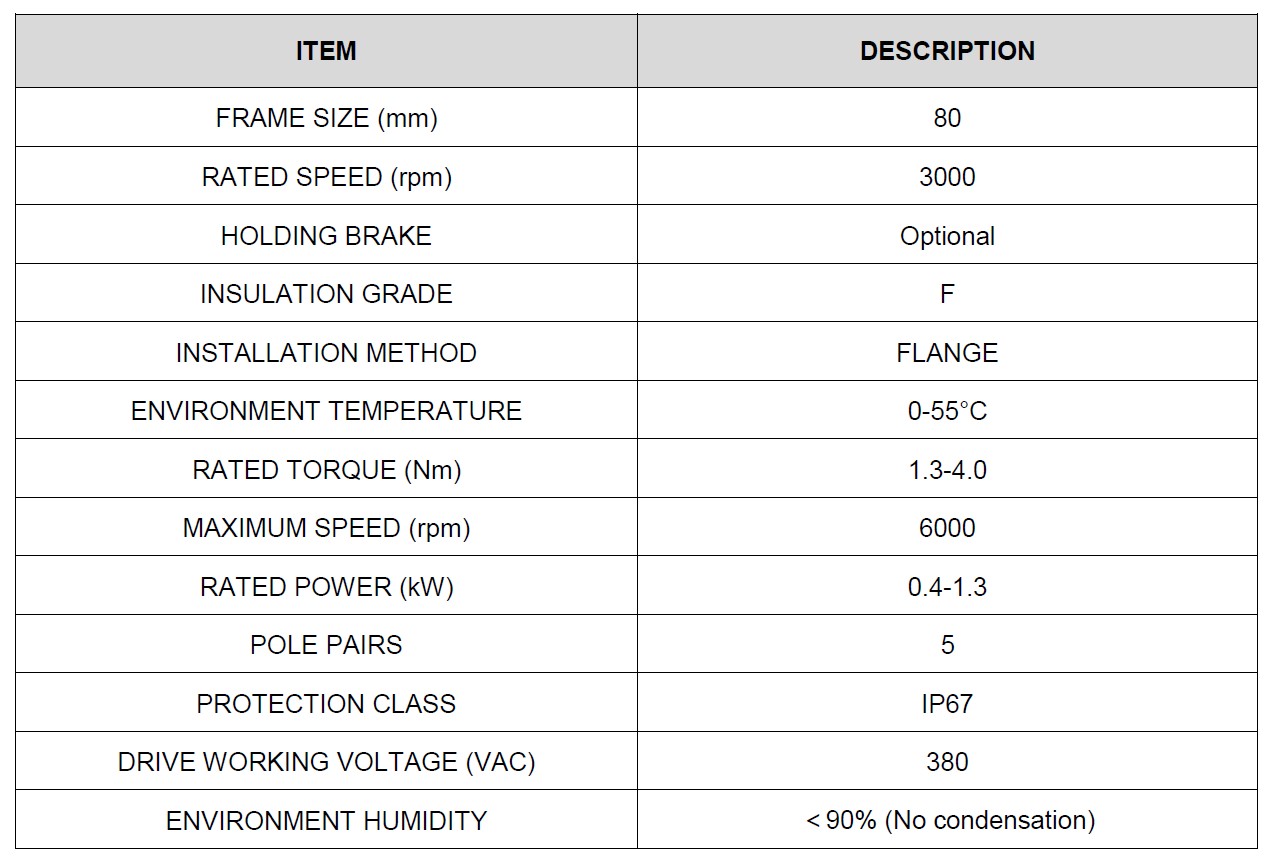

HME Series Servo Motor Features

HME Feature.jpg

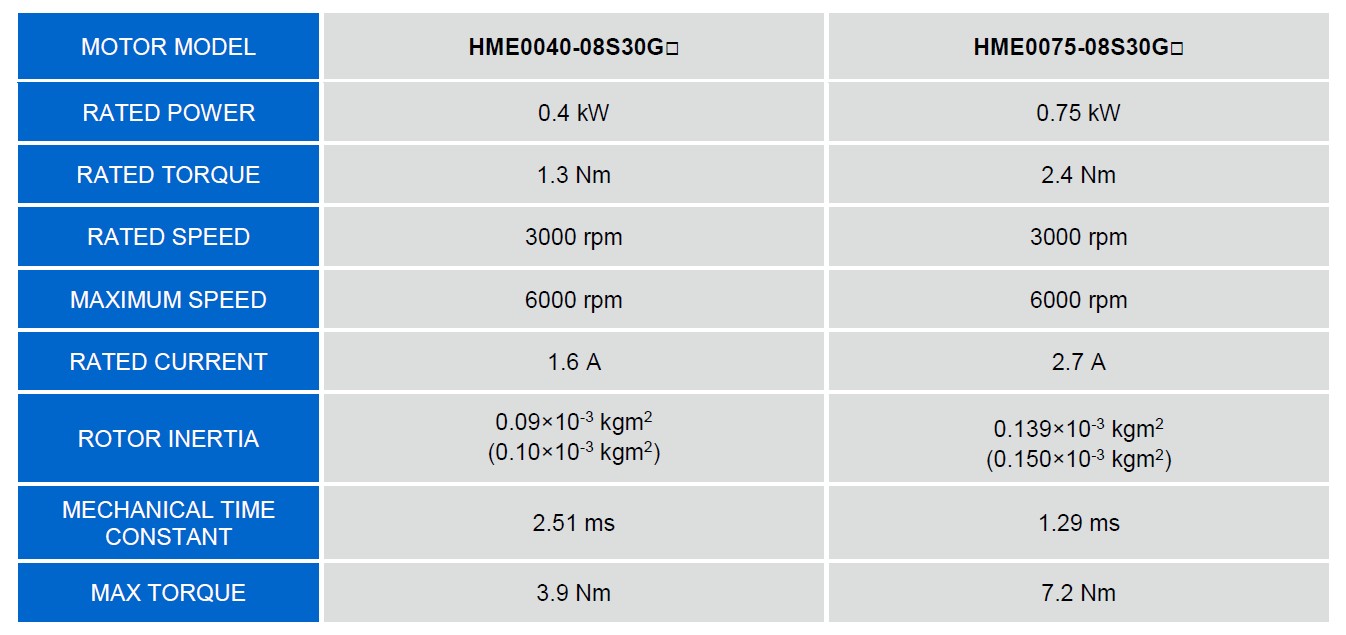

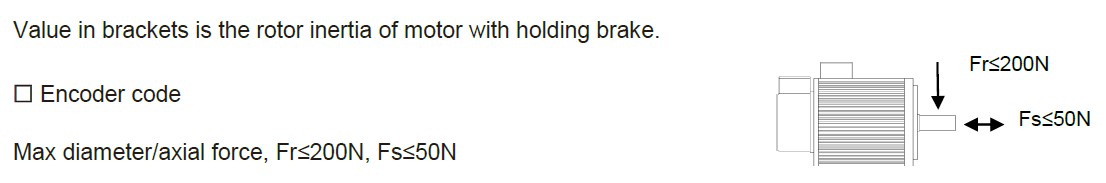

Frame Size 80 3000RPM/6000RPM

HME 3000 6000 RPM.jpg

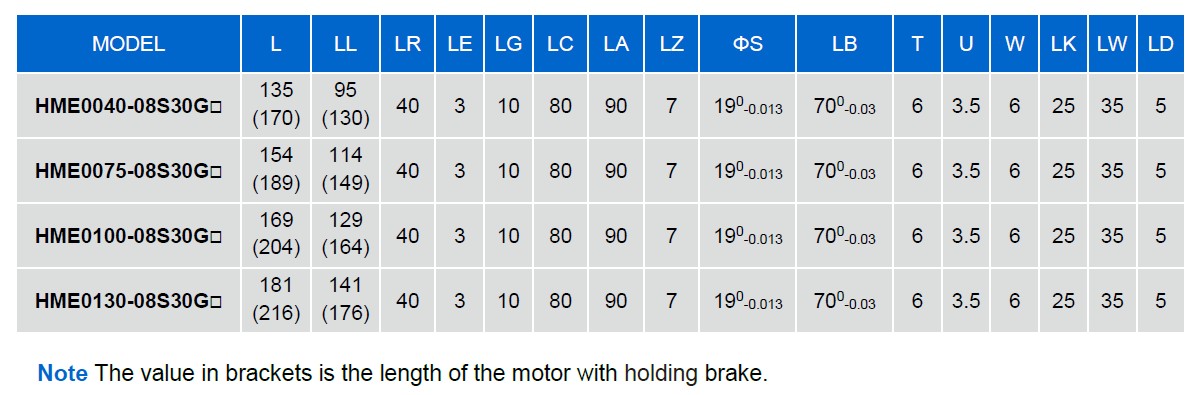

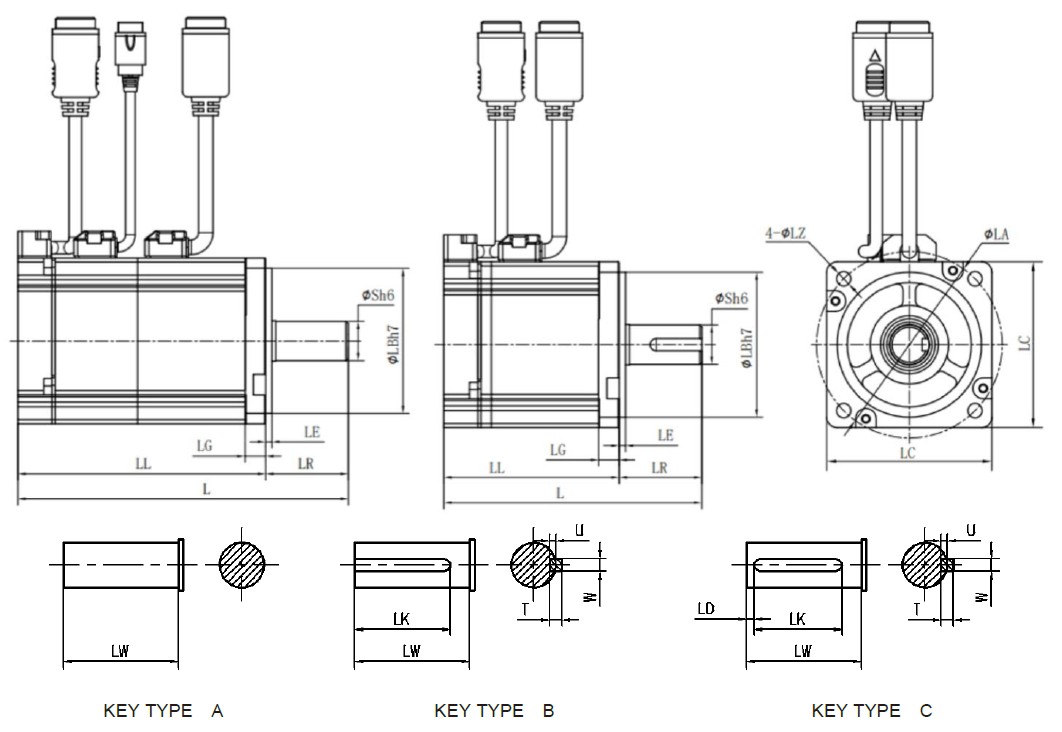

Outline Dimensional Drawing (mm)

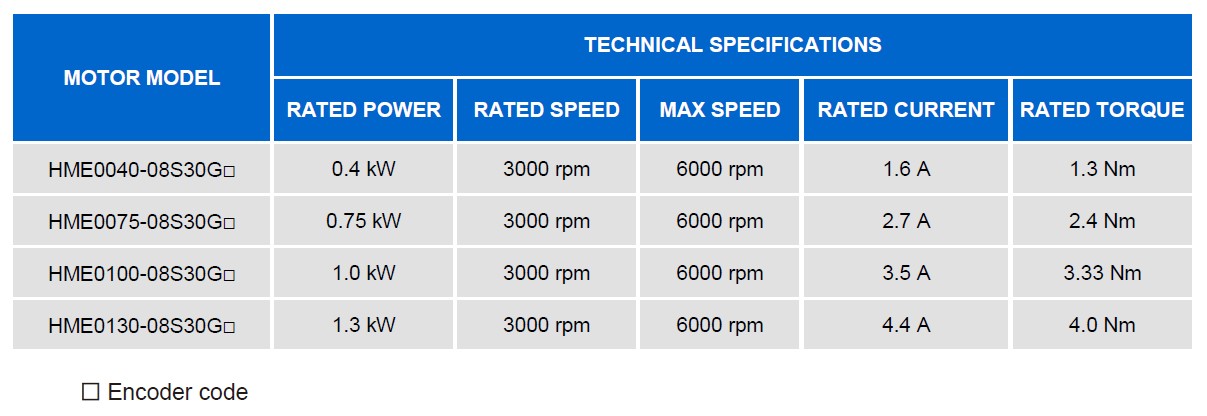

HME Series Servo Motor List

HME Motor List.jpg
