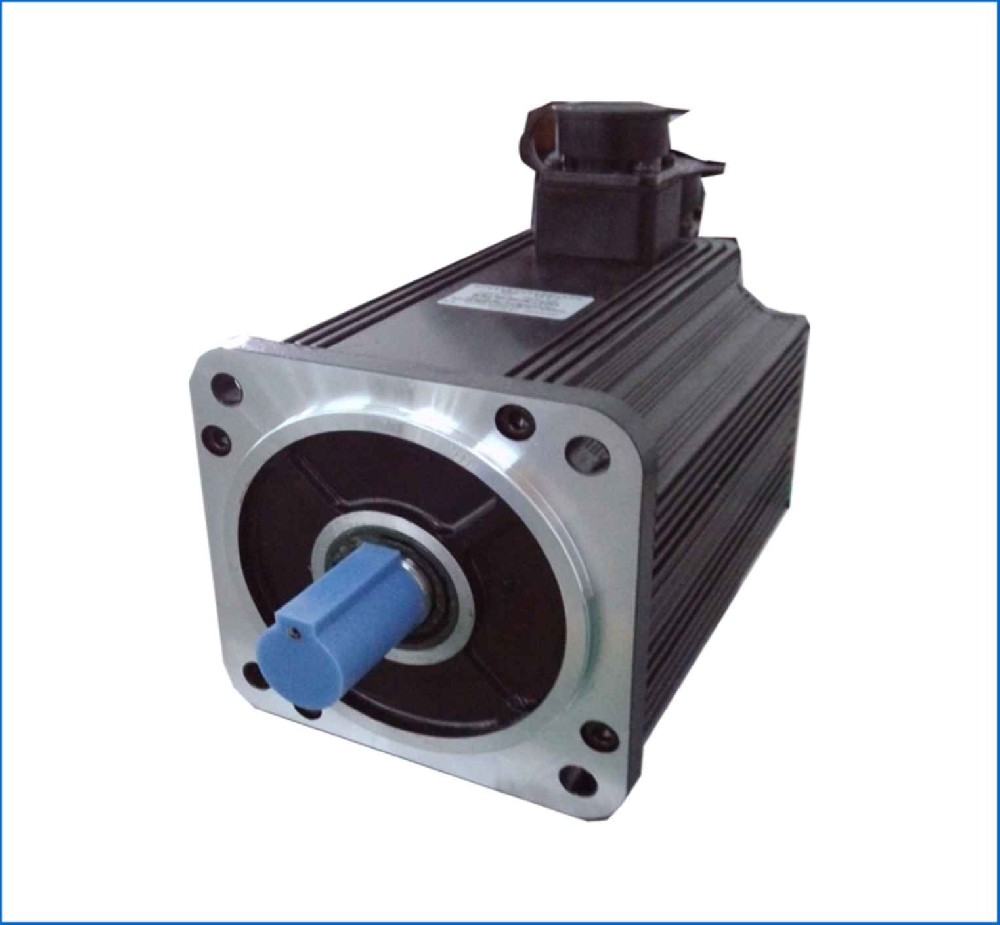

HMD Motor Frame Size 130 (380V)

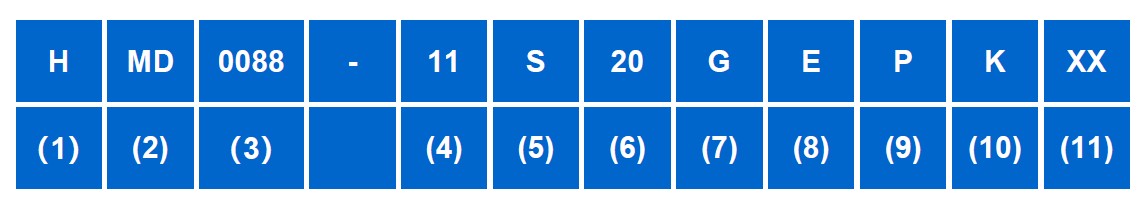

HMD Series Servo Motor Order Number

 (1)     RATED VOLTAGE (VAC),  L, 220 / H, 380
 (2)     PRODUCT SERIES
 (3)     RATED POWER, THE FOUR-DIGIT NUMBER×0.01kW
 (4)     FRAME SIZE, THE DOUBLE-DIGIT NUMBER×10
 (5)     PRODUCT TYPE,  S, STANDARD / C, CUSTOMIZED
 (6)     RATED SPEED, THE DOUBLE-DIGIT NUMBER×100RPM
 (7)     MAXIMUM SPEED FEATURE
 (8)     ENCODER CODE
 (9)     OPTIONS,  B, WITH THE HOLDING BRAKE / O, WITH THE OIL SEAL

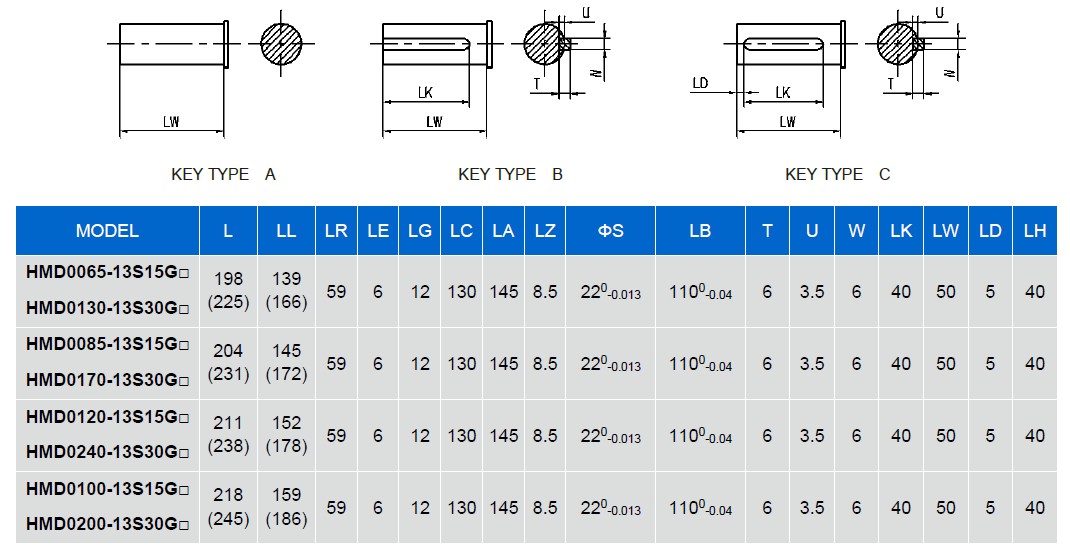

 (10)    THE SHAFT END KEYWAY CODE,  K, WITH THE KEY AND TAP
 (11)    RESERVED
