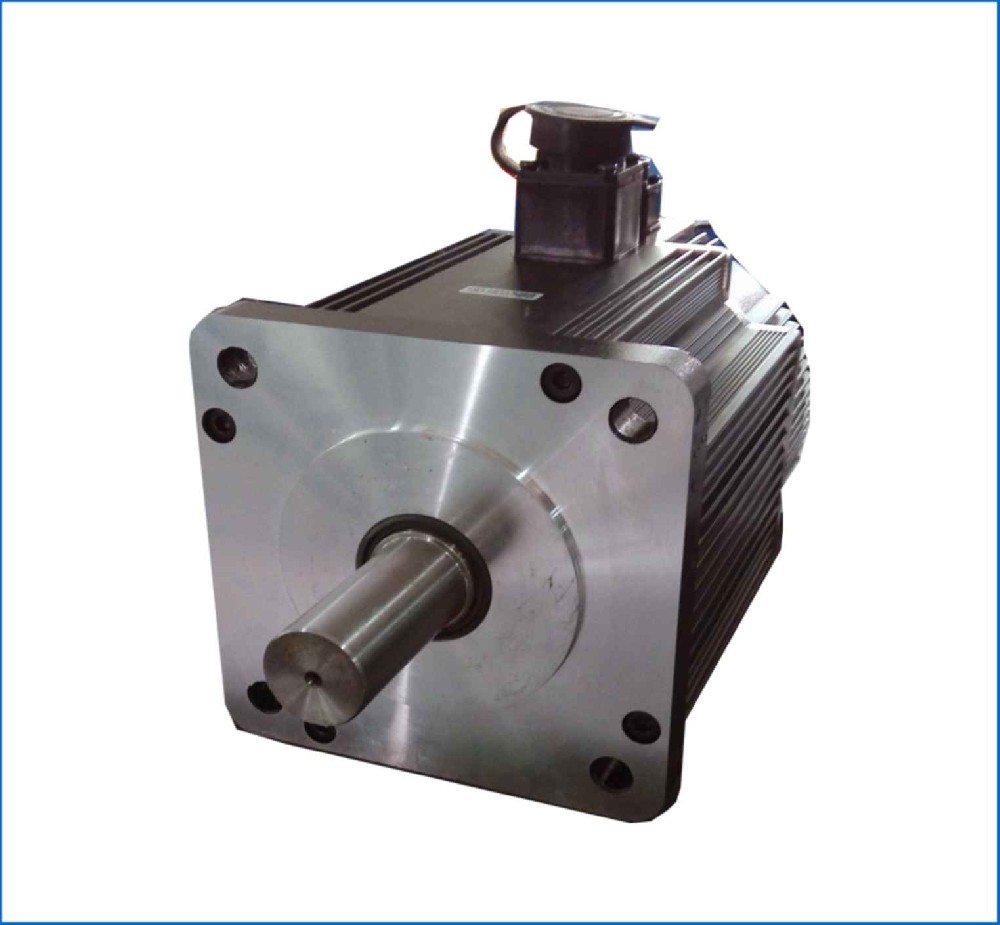

HM Series Motor   Frame Size 180 (380V)

HM Series Motor Frame Size 180 (380V)

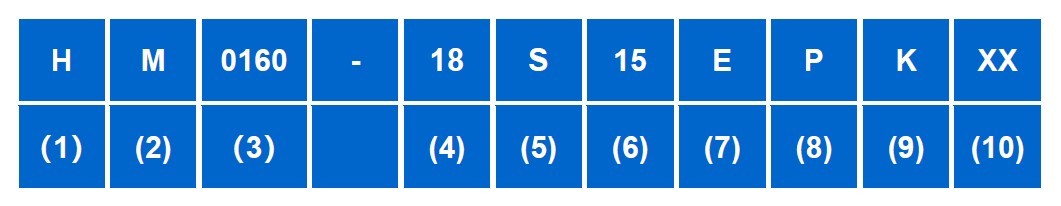

HM Series Servo Motor Order Number

HM Order Number.jpg
(1)     RATED VOLTAGE (VAC),  L, 220 / H, 380
(2)     PRODUCT SERIES
(3)     RATED POWER, THE FOUR-DIGIT NUMBER×0.01kW
(4)     FRAME SIZE, THE DOUBLE-DIGIT NUMBER×10
(5)     PRODUCT TYPE,  S, STANDARD / C, CUSTOMIZED
(6)     RATED SPEED, THE DOUBLE-DIGIT NUMBER×100RPM
(7)     ENCODER CODE
(8)     OPTIONS,  B, WITH THE HOLDING BRAKE / O, WITH THE OIL SEAL
(9)     THE SHAFT END KEYWAY CODE,  K, WITH THE KEY AND TAP
(10)   RESERVED

Product Description

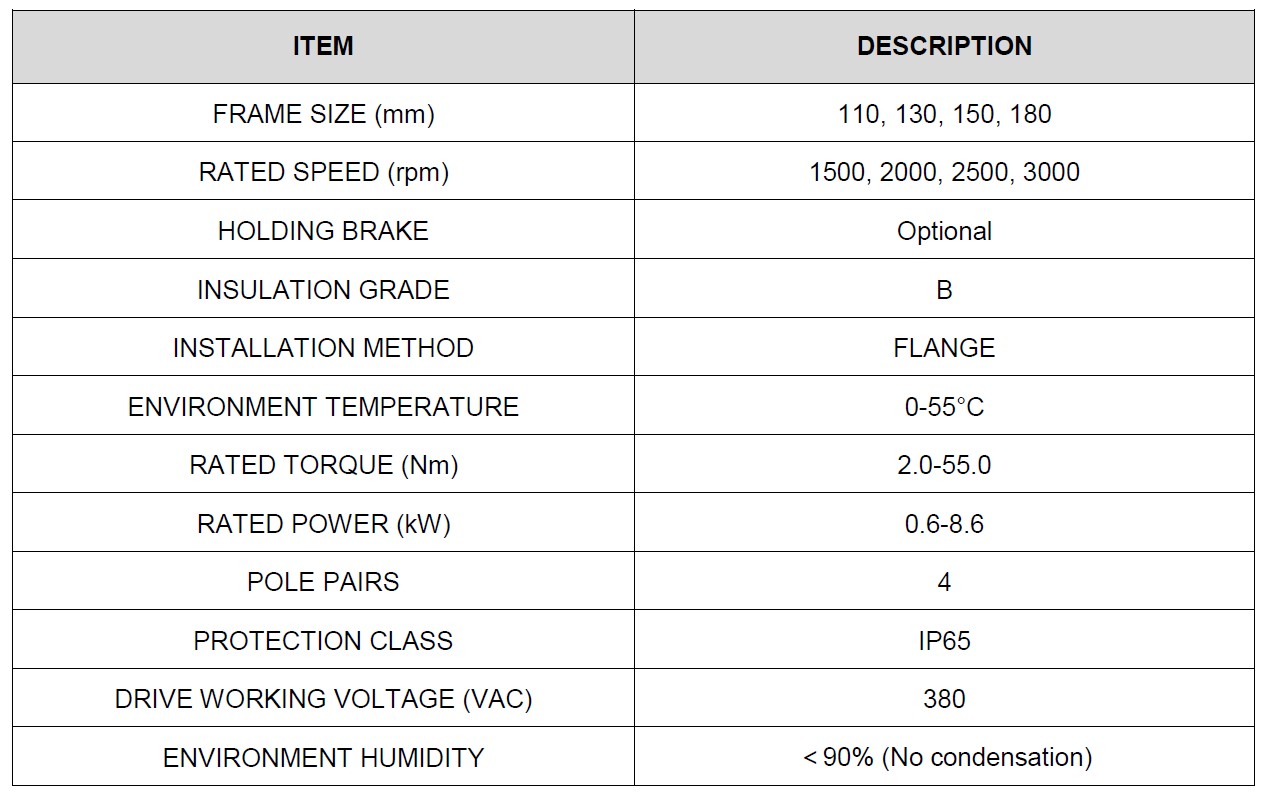

HM Series Servo Motor Features

HM Feature.jpg

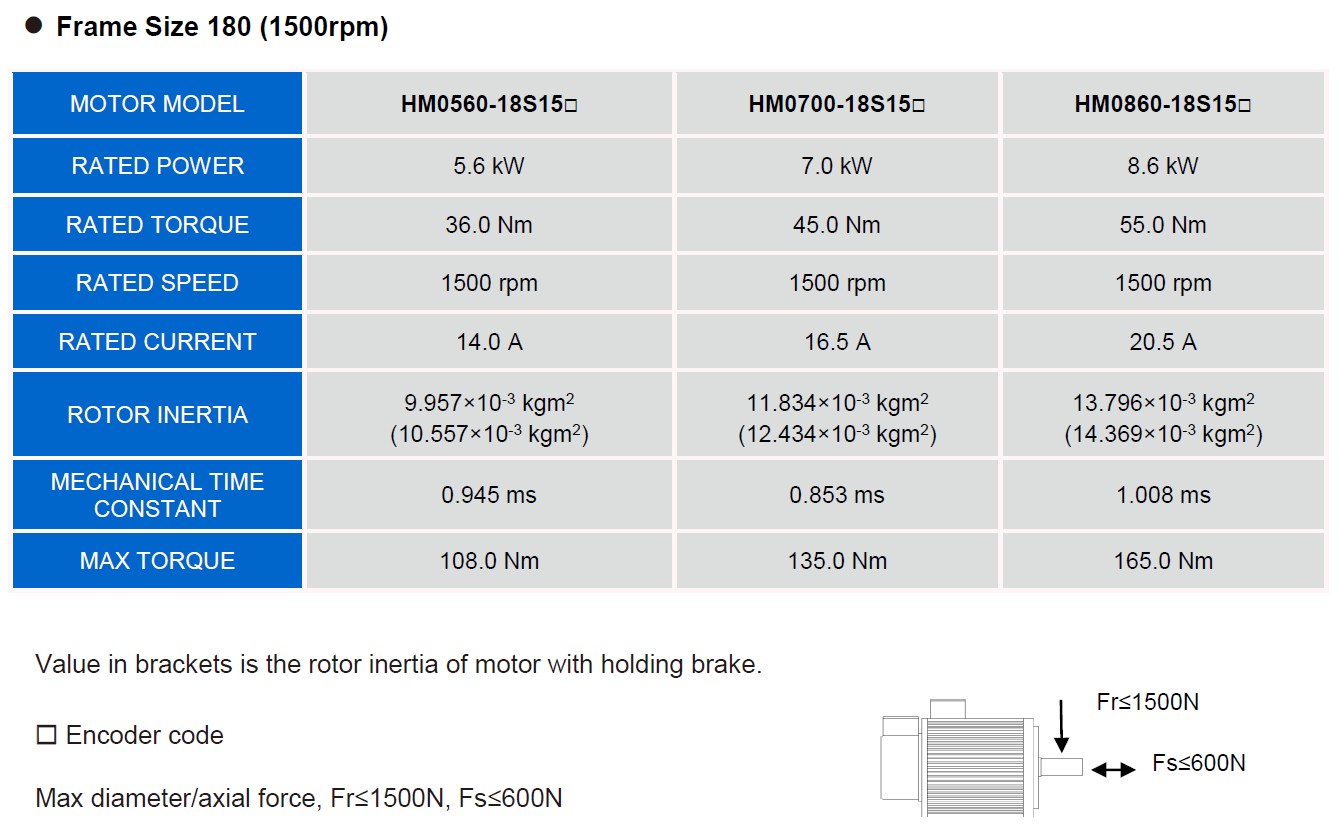

Frame Size 180 1500 RPM

HM 180 1500rpm.jpg

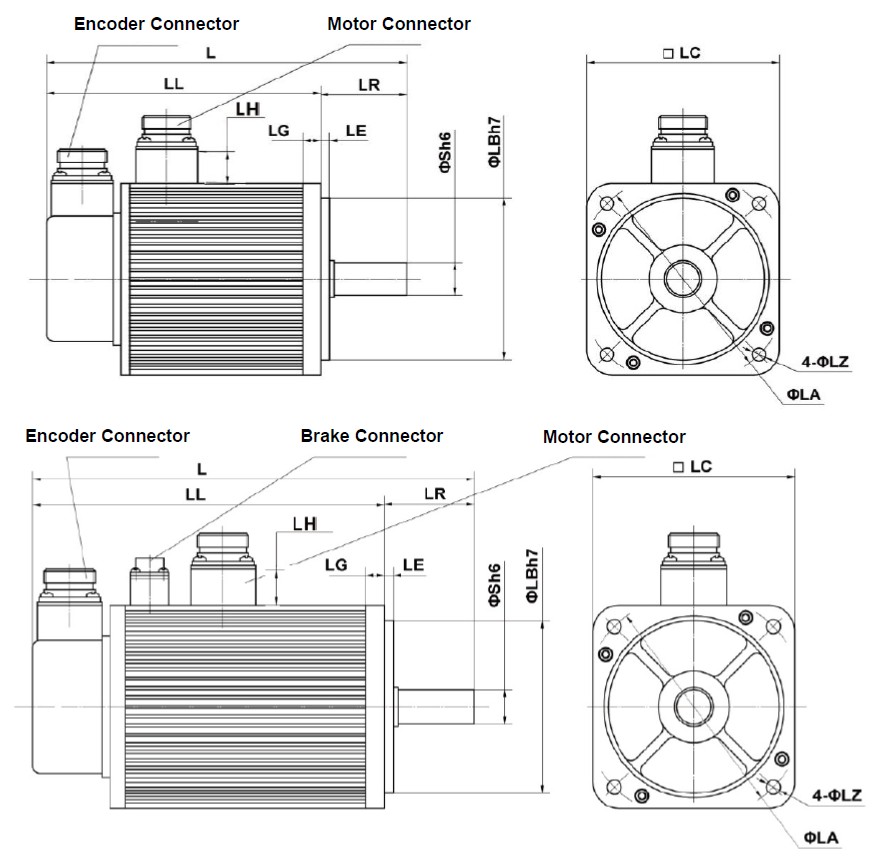

HM 180 Outline.jpg

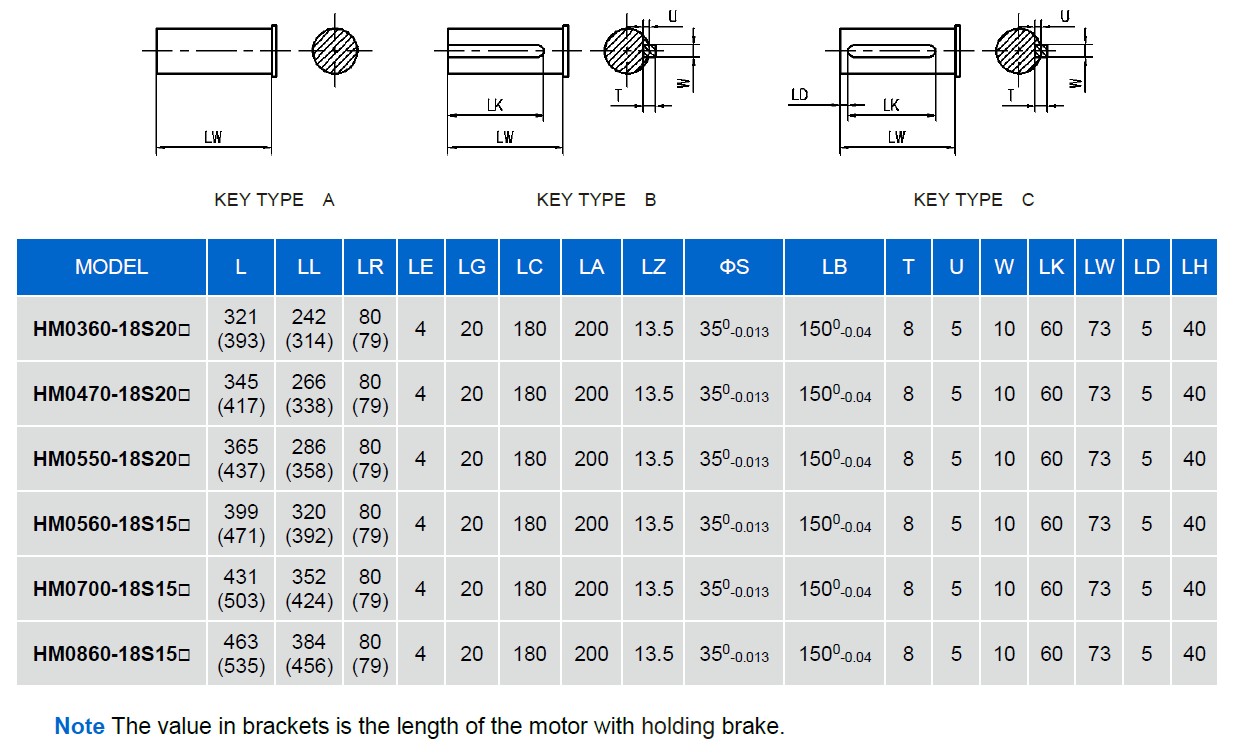

HM 180 Dimensional.jpg

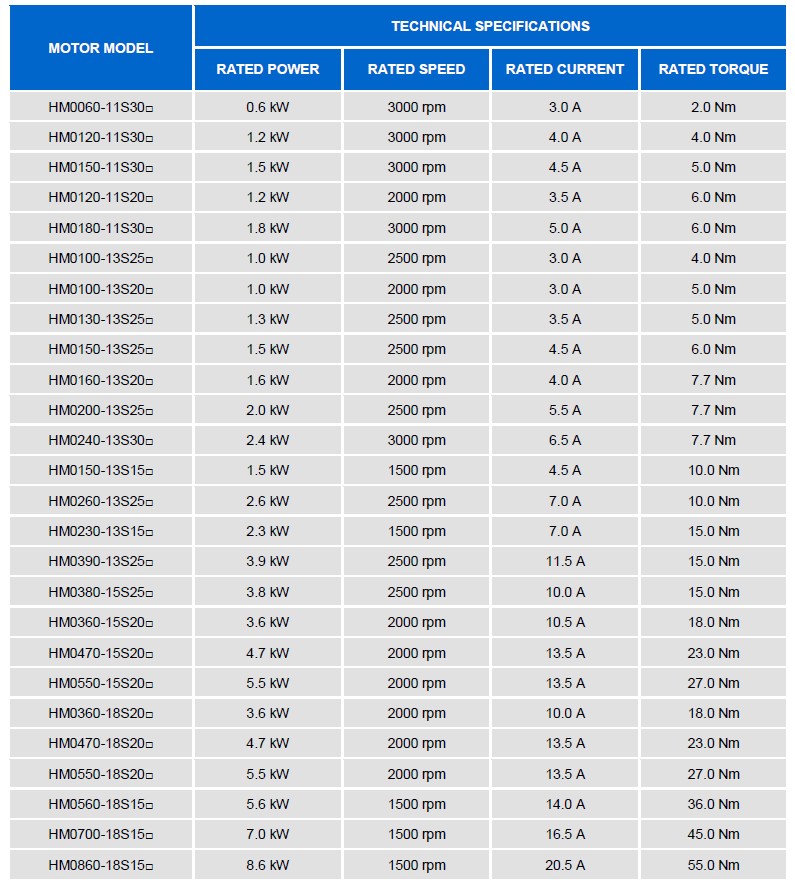

HM Series Servo Motor List

HM motor list.jpg
