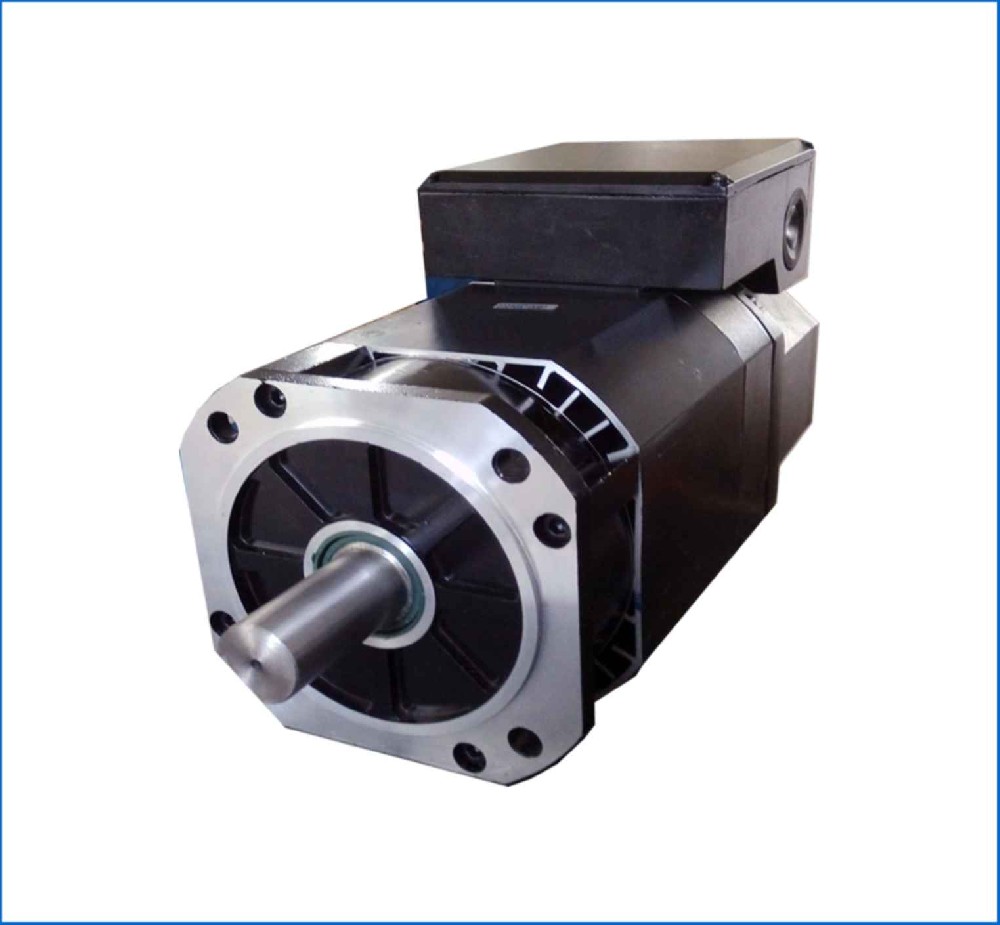

HMB Servo Motor Frame Size 150 (380V)

HMB Servo Motor Frame Size 150 (380V)

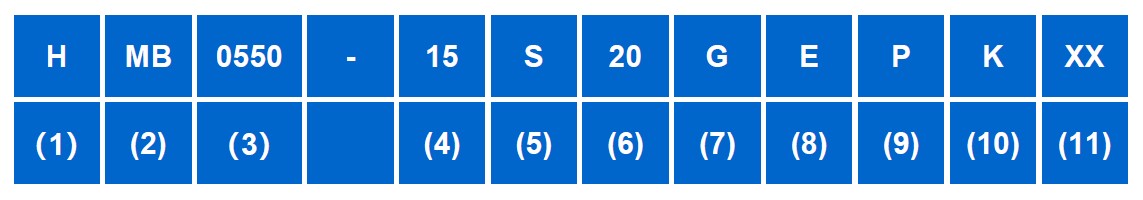

HMB Series Servo Motor Order Number

HMB Order Number.jpg

(1)     RATED VOLTAGE (VAC),  L, 220 / H, 380
(2)     PRODUCT SERIES
(3)     RATED POWER, THE FOUR-DIGIT NUMBER×0.01kW
(4)     FRAME SIZE, THE DOUBLE-DIGIT NUMBER×10
(5)     PRODUCT TYPE,  S, STANDARD / C, CUSTOMIZED
(6)     RATED SPEED, THE DOUBLE-DIGIT NUMBER×100RPM
(7)     MAXIMUM SPEED FEATURE
(8)     ENCODER CODE
(9)     OPTIONS,  B, WITH THE HOLDING BRAKE / O, WITH THE OIL SEAL
(10)    THE SHAFT END KEYWAY CODE,  K, WITH THE KEY AND TAP
(11)    RESERVED

Product Description

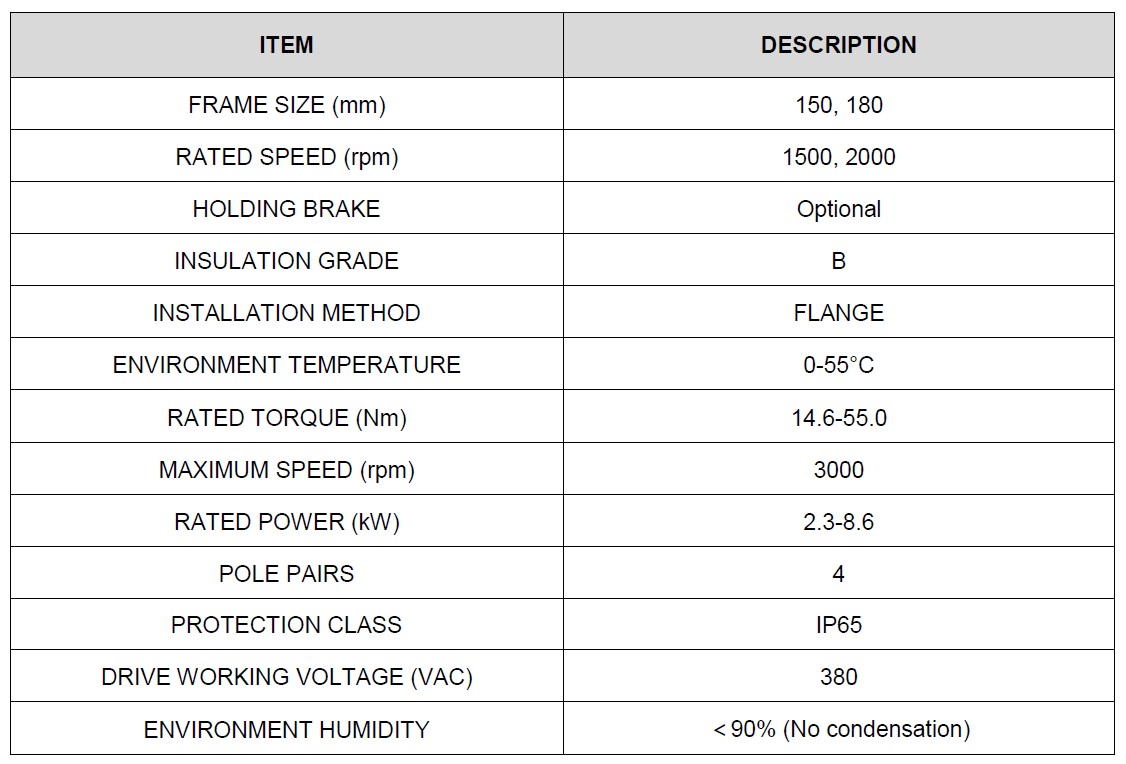

HMB Series Servo Motor Feature

HMB Feature.jpg

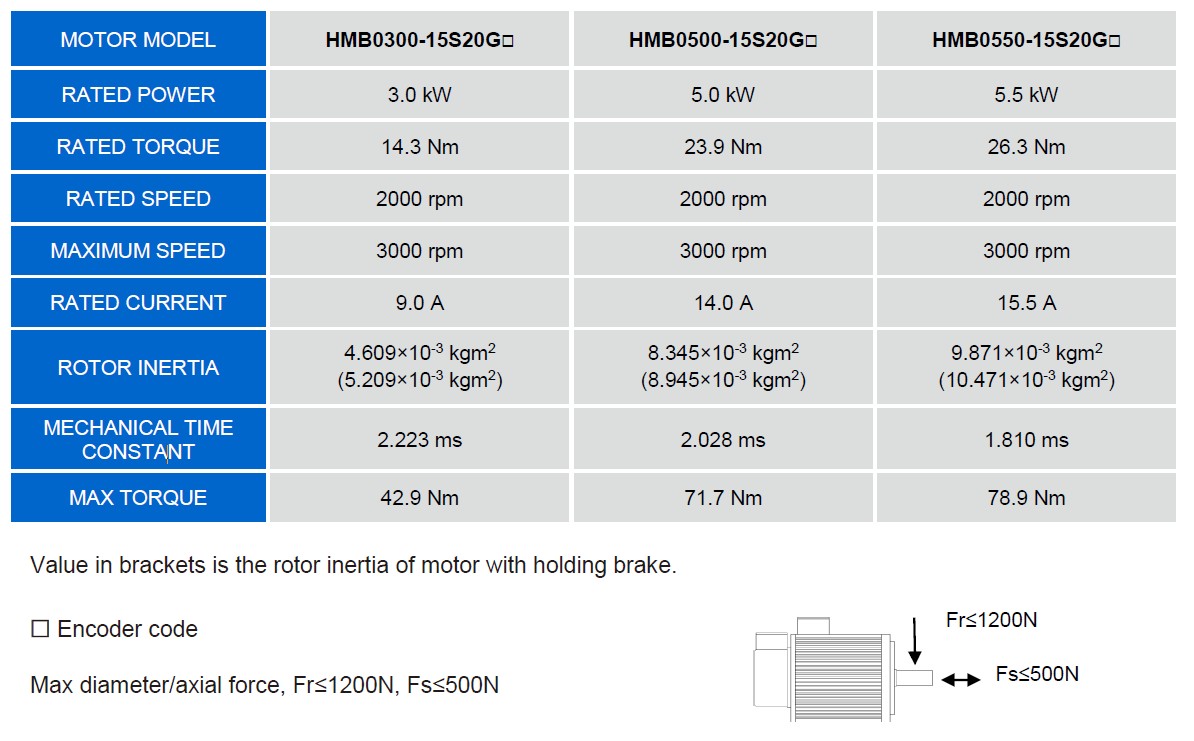

Frame Size 150  2000RPM/3000RPM

HMB 150.jpg

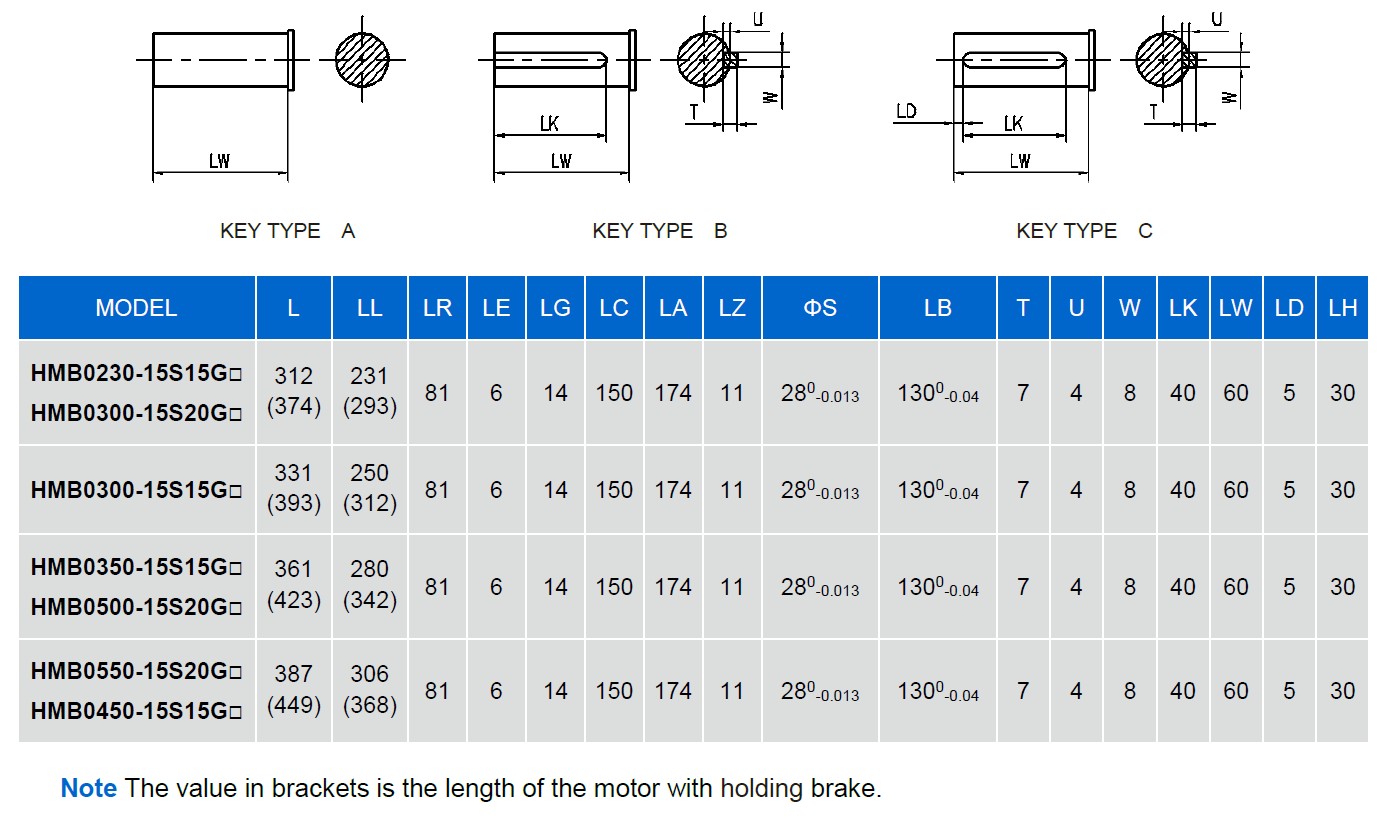

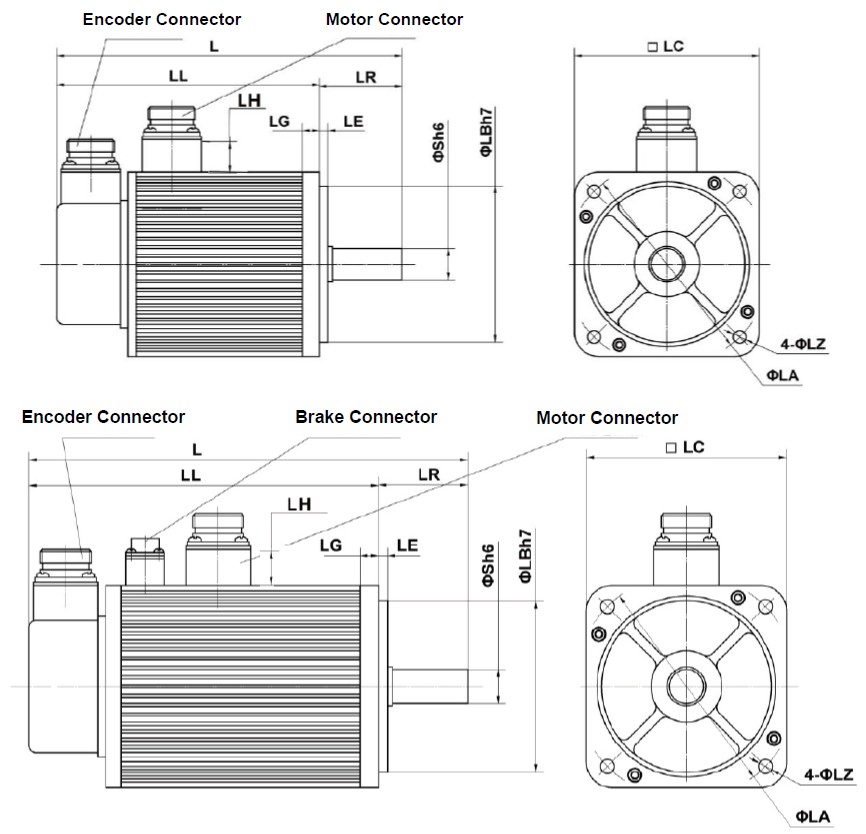

HMB 150 Outline 01.jpg

HMB 150 Outline 02.jpg

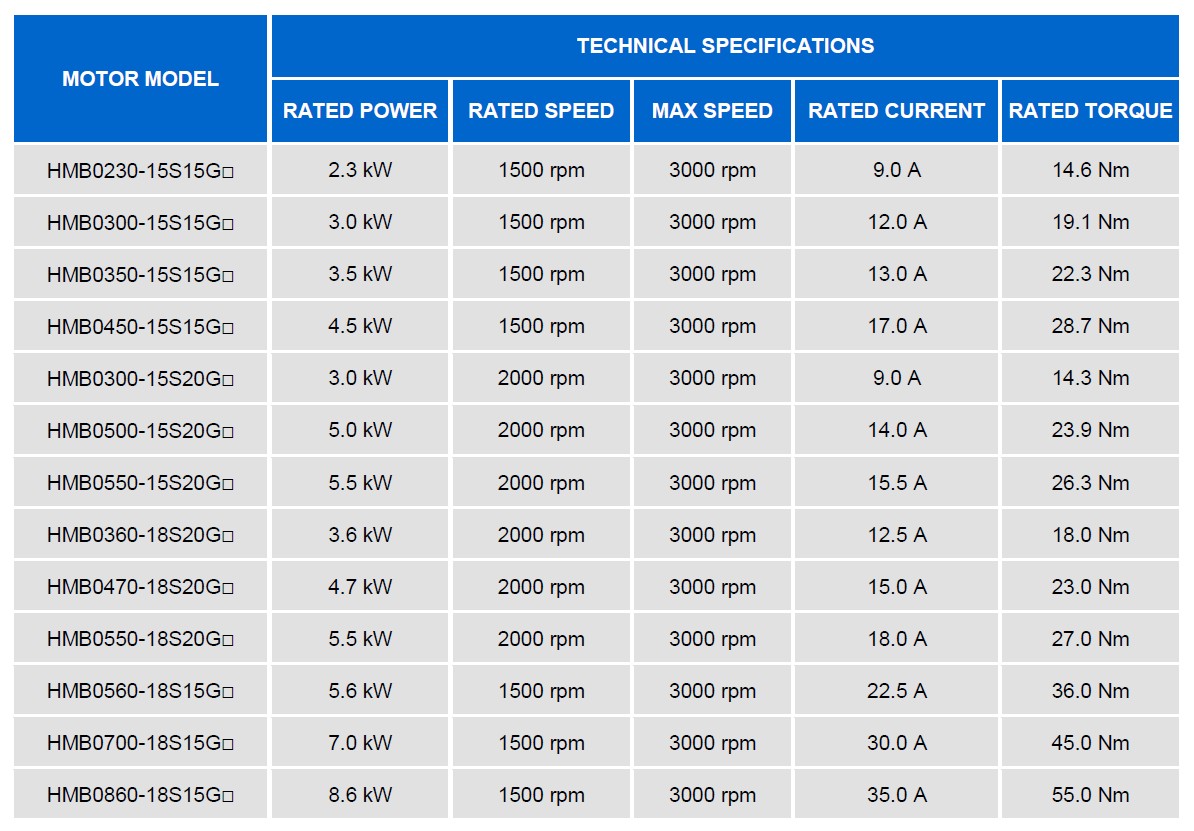

HMB Series Servo Motor List

HMB list.jpg
