RT20 PA Pulse series Servo Drive (380V)

RT20 PA Pulse series Servo Drive (380V)

The RT series ac servo is all digital ac servo drive, with high reliability, performance and cost effectiveness.

1. Supports 485 communication. Parameters can be read, written and monitored.

2. Communication rate is 100M, and the synchronization jitter is less than 100ns.

3. Supports input and output IO programming. Up to 11 input terminals and 8 outputs.


The product model number is the unique order number of the product. It includes the series type, rated power, rated voltage, structure, optional accessories and other key information.

Product Description

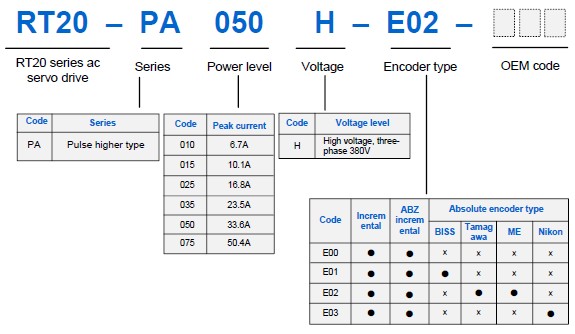

RT20 PA Pulse series Model Order Number

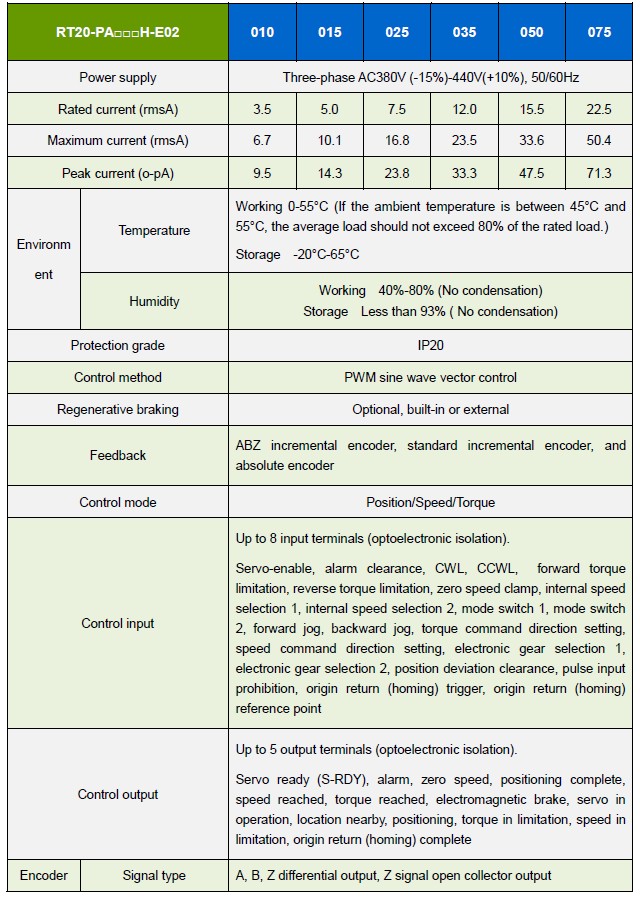

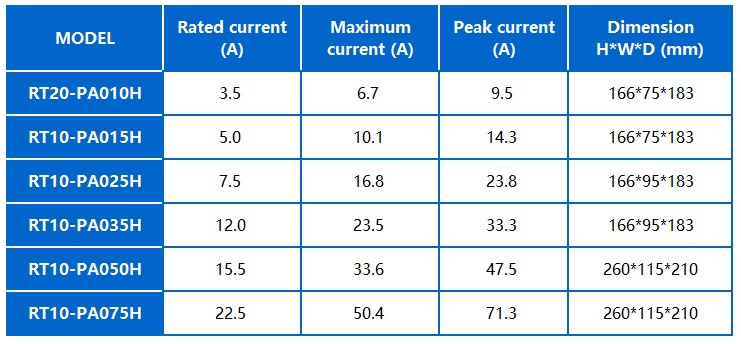

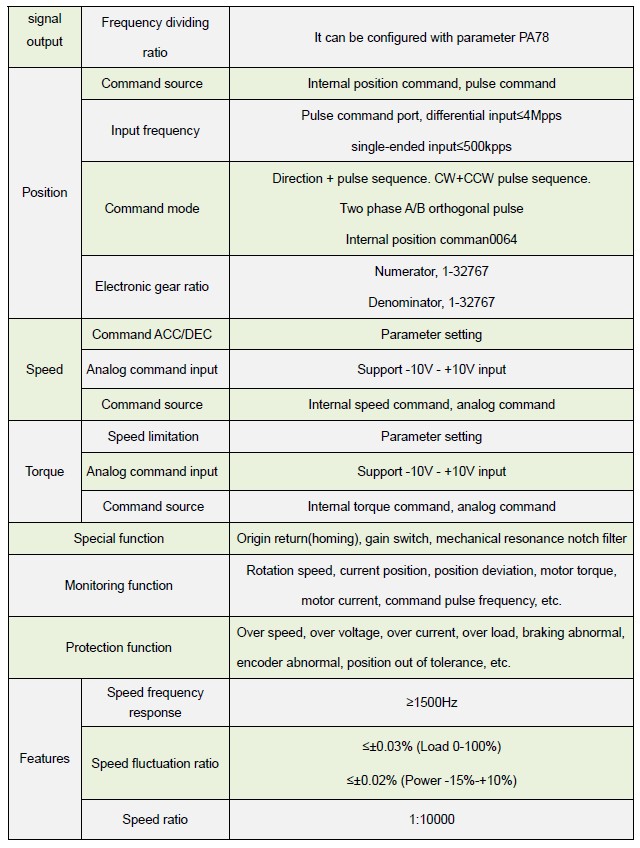

RT20 PA Pulse series Servo Drive Technical Data

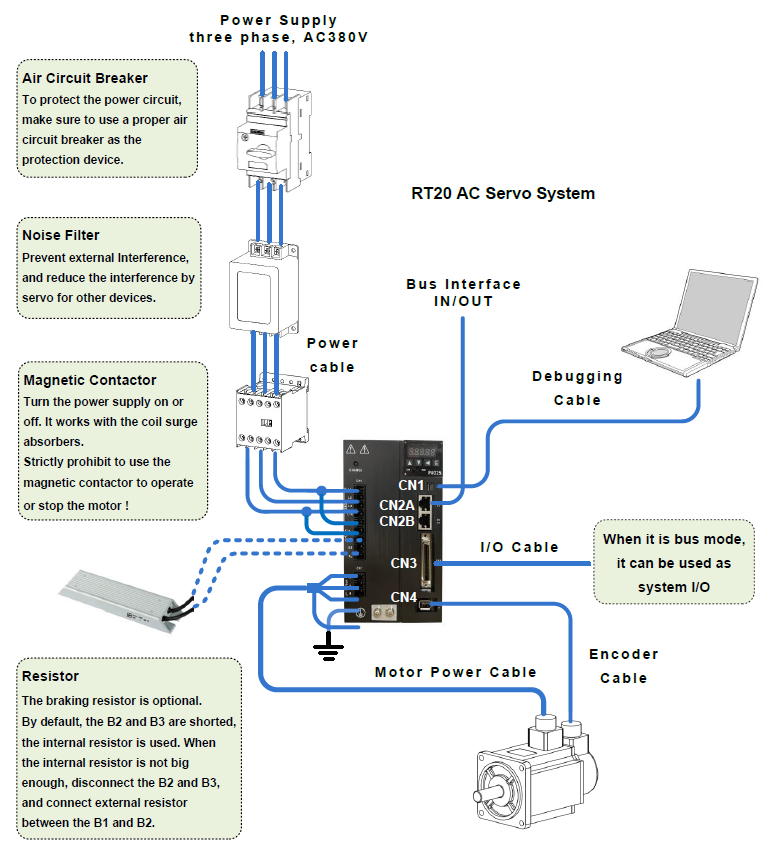

RT20 AC Servo Wiring Diagram
