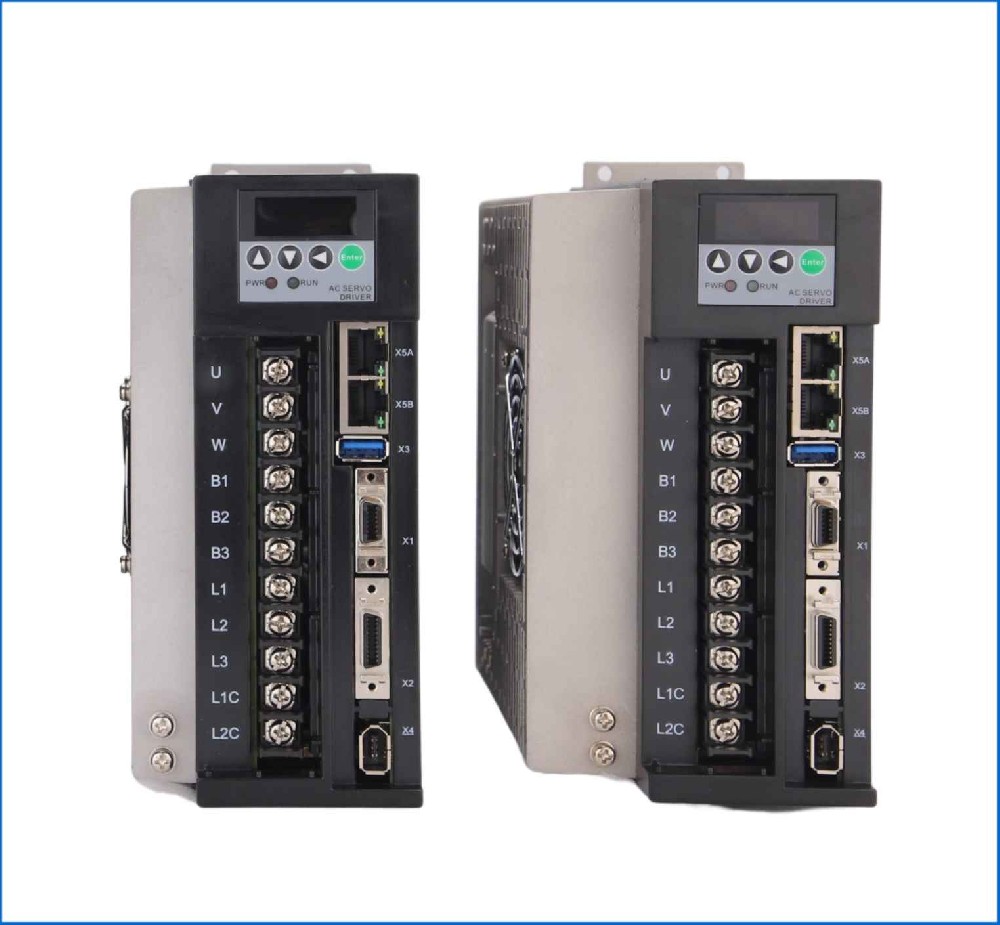

RT10 EA Bus series Servo Drive (220V)

The RT series ac servo is all digital ac servo drive, with high reliability, performance and cost effectiveness.

1. Supports the EtherCAT industrial fieldbus interface, with FPGA solution inside.

2. Communication rate is 100M, and the synchronization jitter is less than 100ns.

3. The internal I/O of the servo drive can be expanded to the I/O of the system PLC.

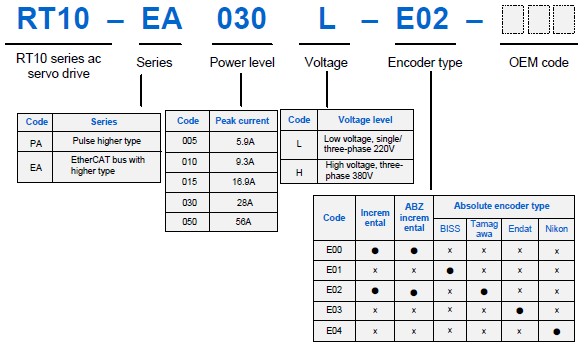

The product model number is the unique order number of the product. It includes the series type, rated power, rated voltage, structure, optional accessories and other key information.
