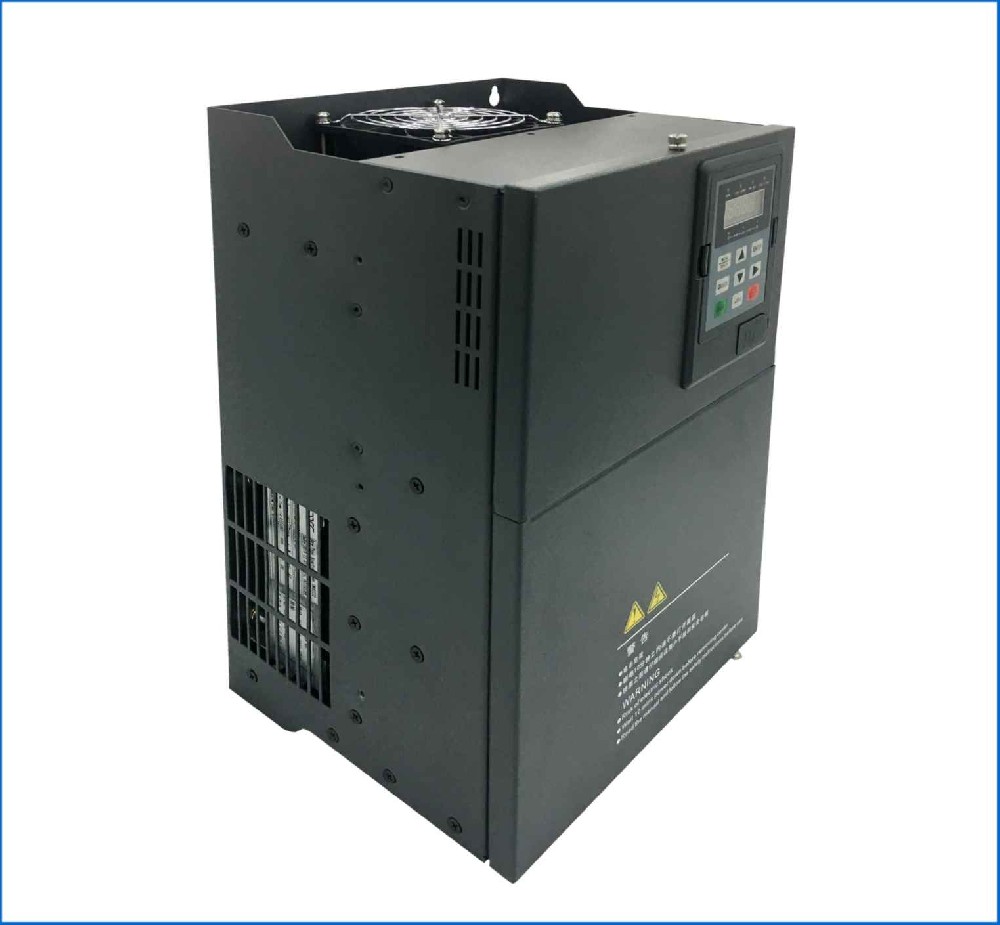

FT50-4T0300G-XX  (VFD 30kW)

FT50-4T0300G-XX (VFD 30kW)

The FT50 is a standard general purpose frequency converter / Variable Frequency Drive (VFD).

It supports V/f control, flux vector control with and without encoder (Including the speed and torque control), asynchronous and synchronous motor both.


It is widely used in many industries, such as Metallurgy, Crane, Paper making, Municipal engineering, Ceramic, Textile, Lifting, Chemical, Plastics, Rubber, Cable manufacture, Glass, Printing, Packaging, Wire drawing, Food, Pharmaceuticals, and Fan/Pump etc.

Product Description

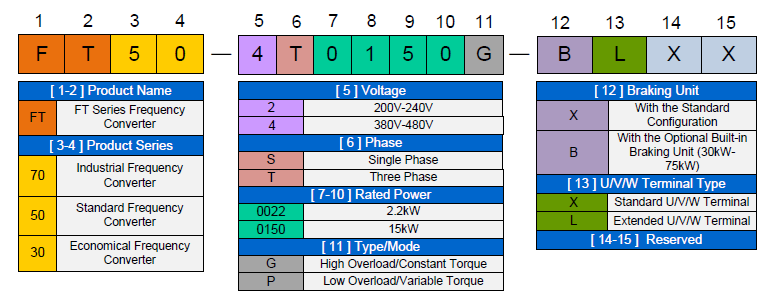

FT series Model Order Number

The product model number is the unique order number of the product. It includes the series type, rated power, rated voltage, structure, optional accessories and other key information.

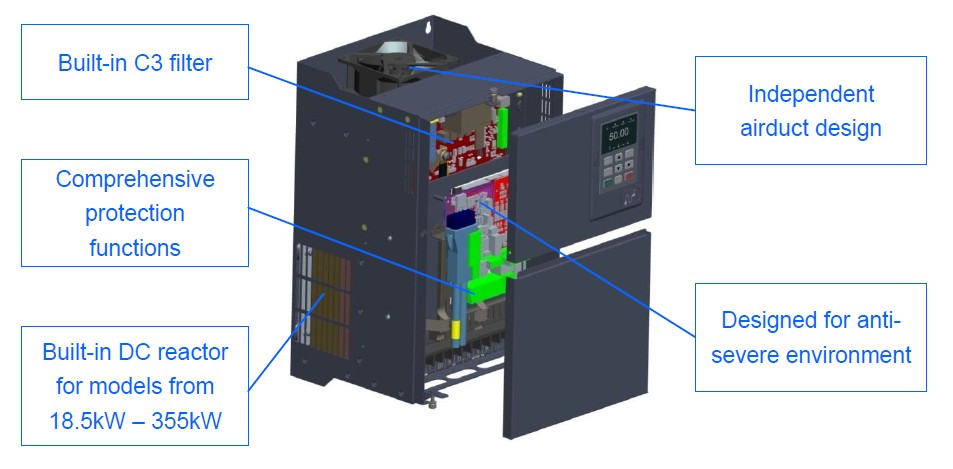

With reliable product design and reliable performance

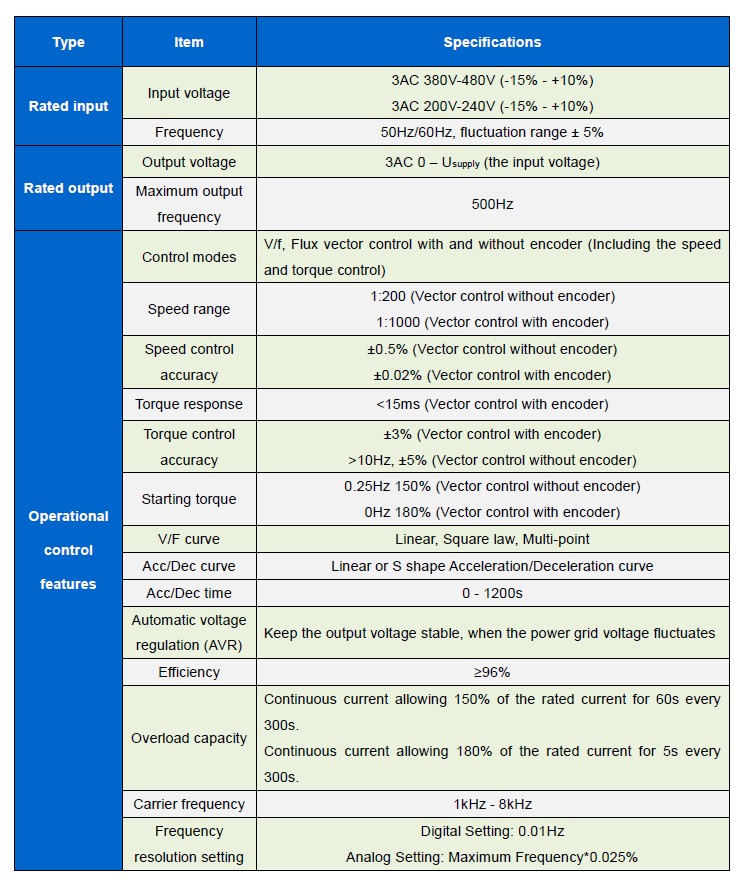

FT50 series VFD Technical Data

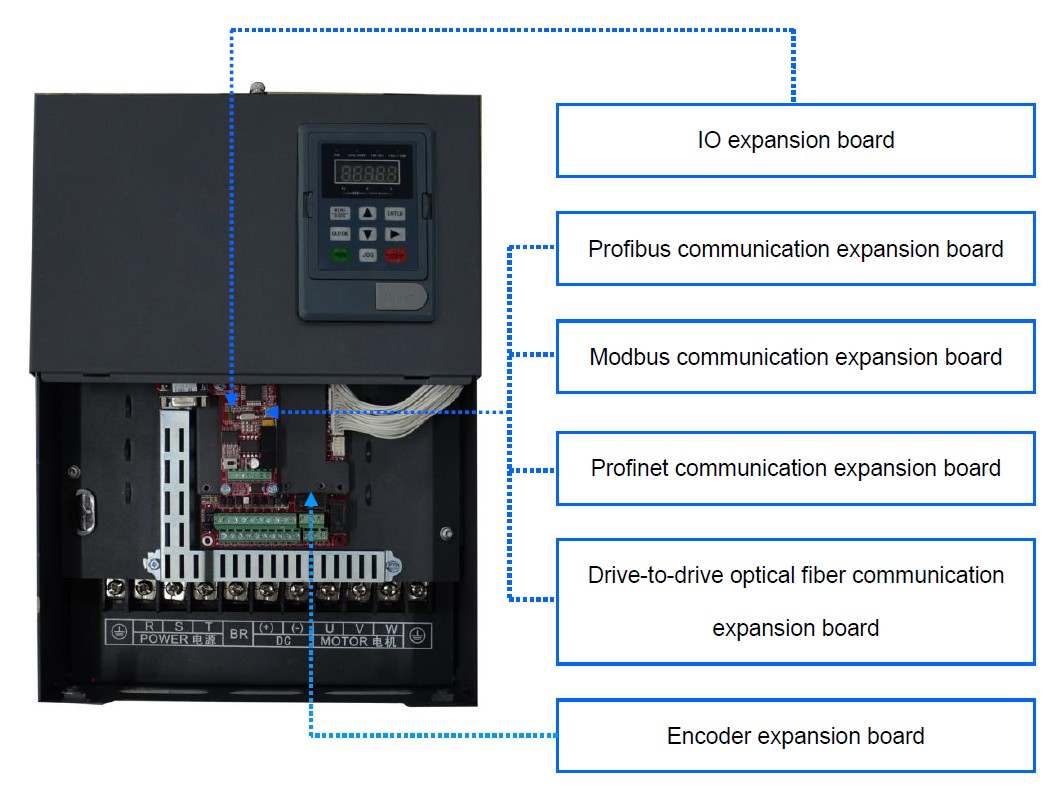

FT50 VFD Expansion Boards

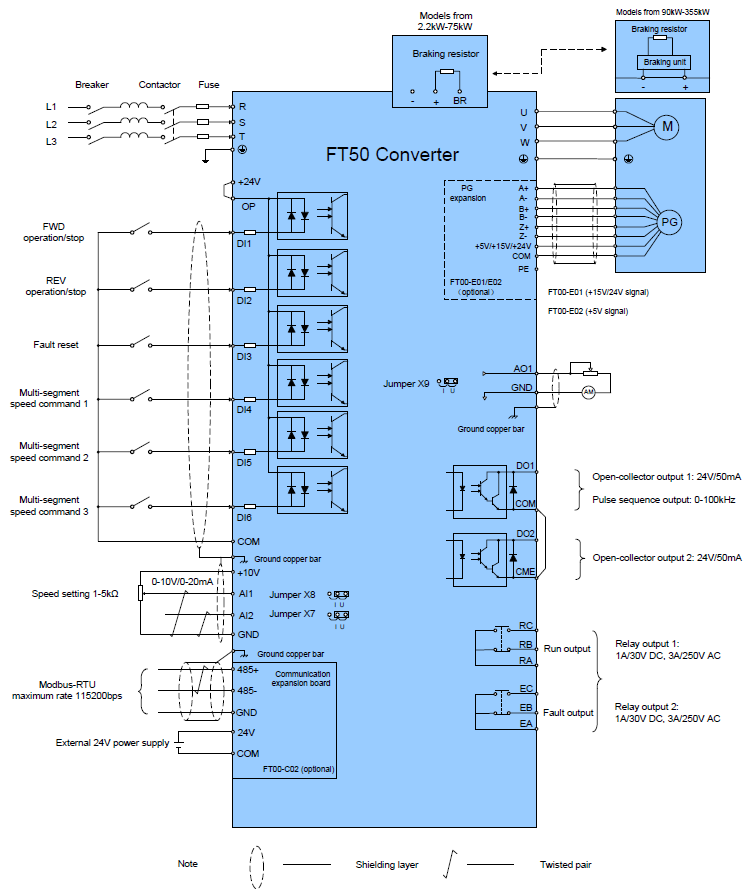

FT50 VFD Wiring Diagram
