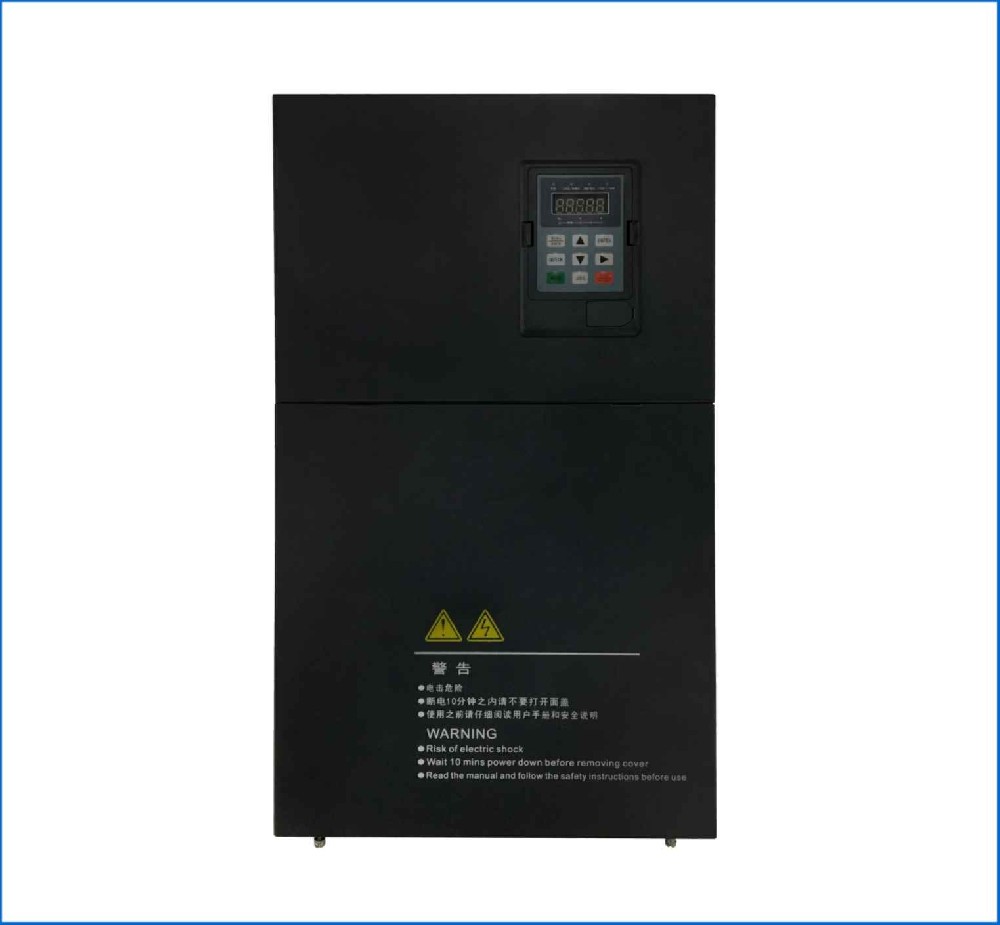

FT30-4T0450G-XX (VFD 55kW P Type)

The FT30 is an economical general purpose frequency converter / Variable Frequency Drive (VFD).

It supports V/f control, asynchronous and synchronous motor both.

It is widely used in many industries, such as Metallurgy, Construction hoist, Ceramic, Glass, Textile, Chemical, Rubber, Food, Pharmaceuticals, Logistics, Fan/Pump and HVAC etc.

Inquiry Downloads

Product Description

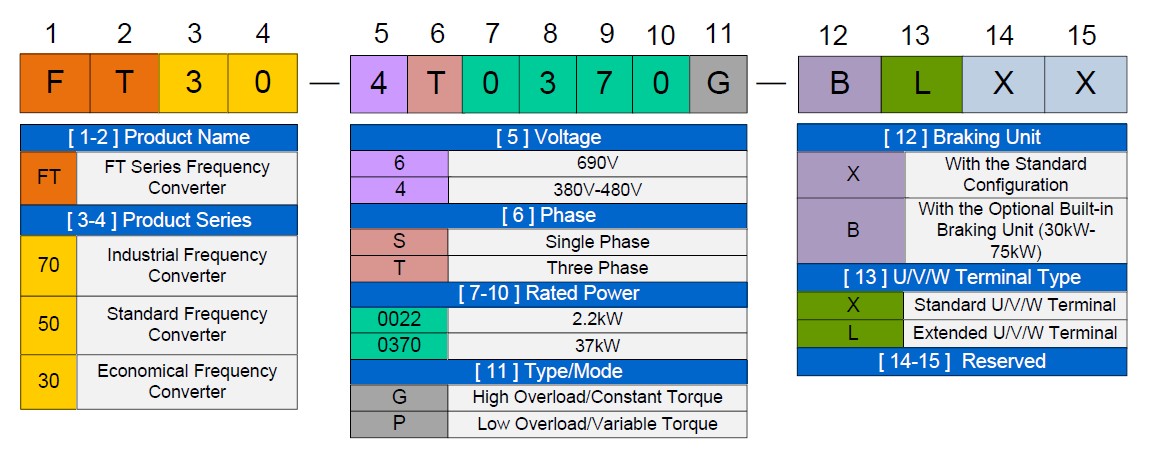

FT series Model Order Number

The product model number is the unique order number of the product. It includes the series type, rated power, rated voltage, structure, optional accessories and other key information.

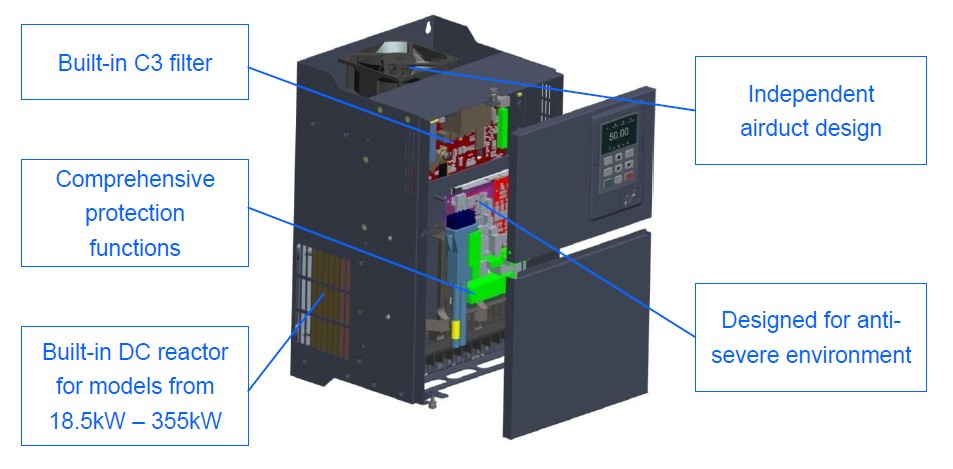

With reliable product design and good performance

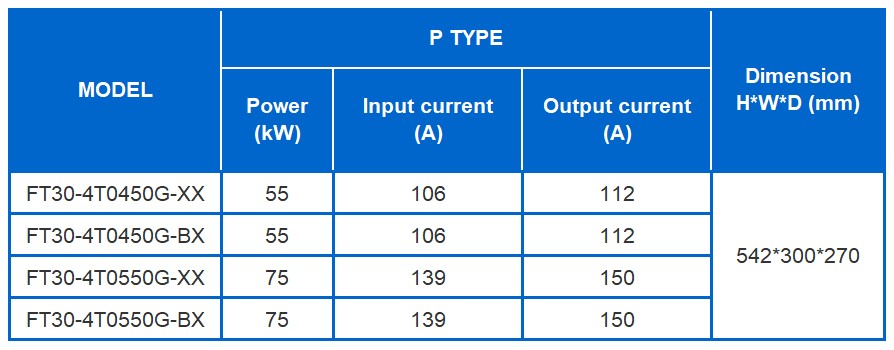

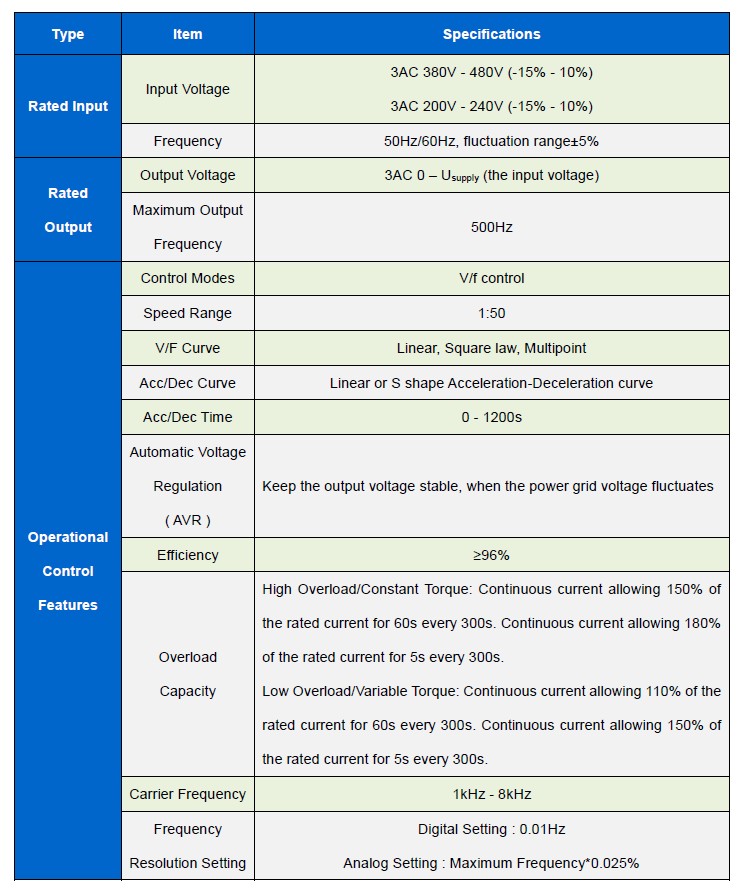

FT30 Series VFD Technical Data

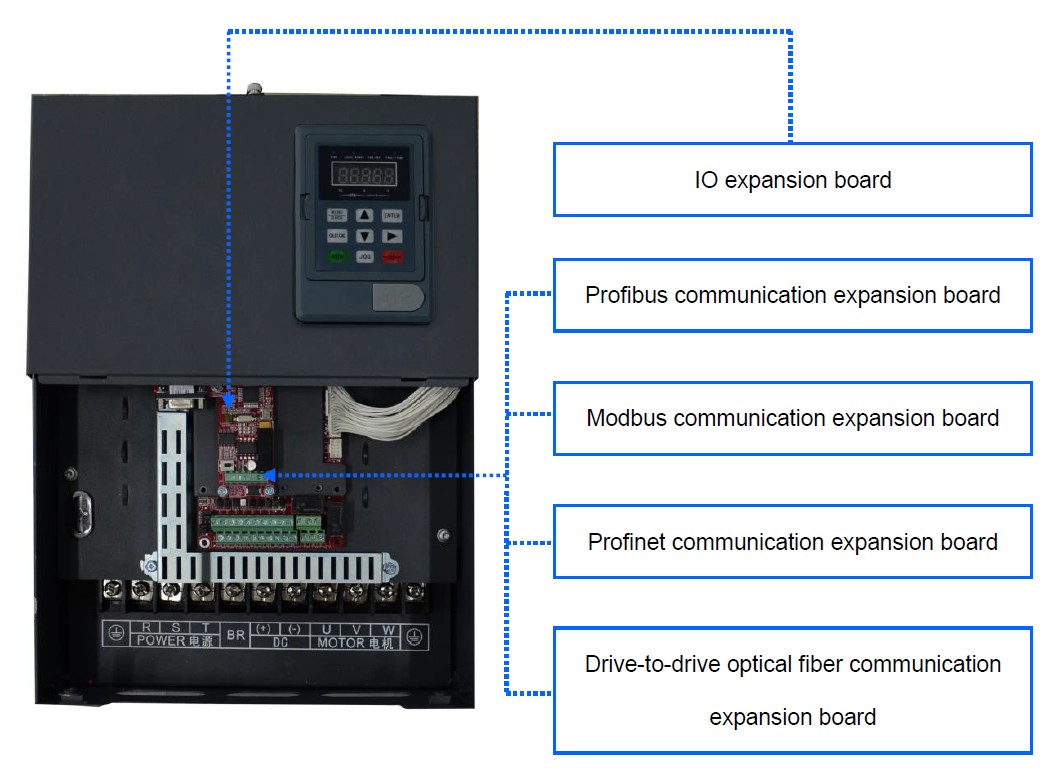

FT30 VFD Expansion Boards

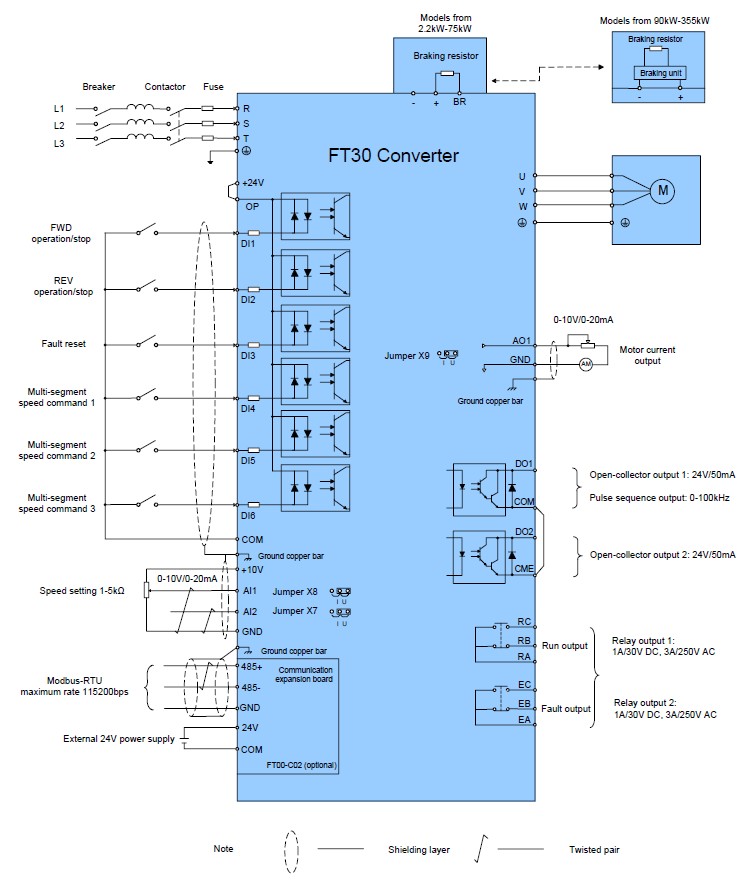

FT30 VFD Wiring Diagram
