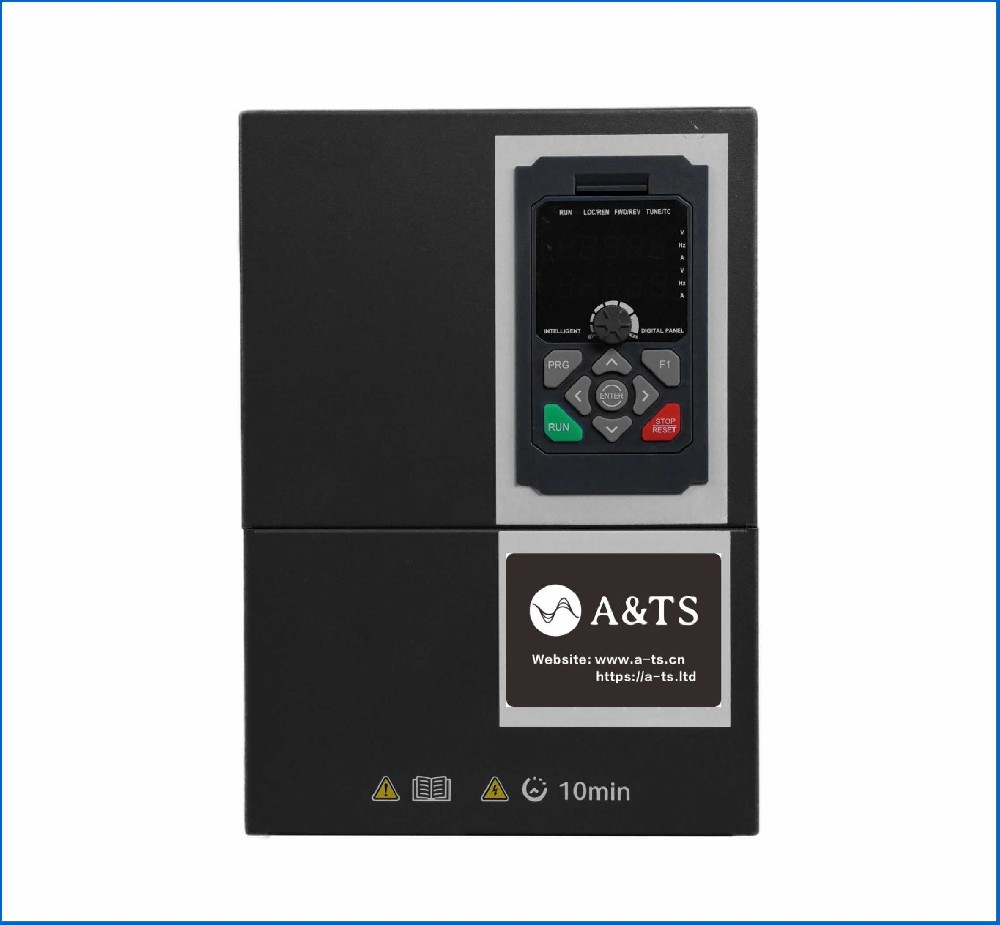

DT240 11-15kW AC Drive 220V

DT240 11-15kW AC Drive 220V

The DT240 VFD is the standard general purpose Variable Frequency Drive/AC Drive.

For alternating current asynchronous motors, it supports V/F, open-loop vector, and closed-loop vector control.
For permanent magnet synchronous motors, it supports both open-loop vector control and closed-loop vector control.

DT240 2T 11-15kW.jpg
For high-speed permanent magnet synchronous motors, it supports open-loop vector control, which is particularly suitable for applications involving high-speed silent permanent magnet synchronous motors, such as high-speed fans, and high-speed electric spindles.

Product Description

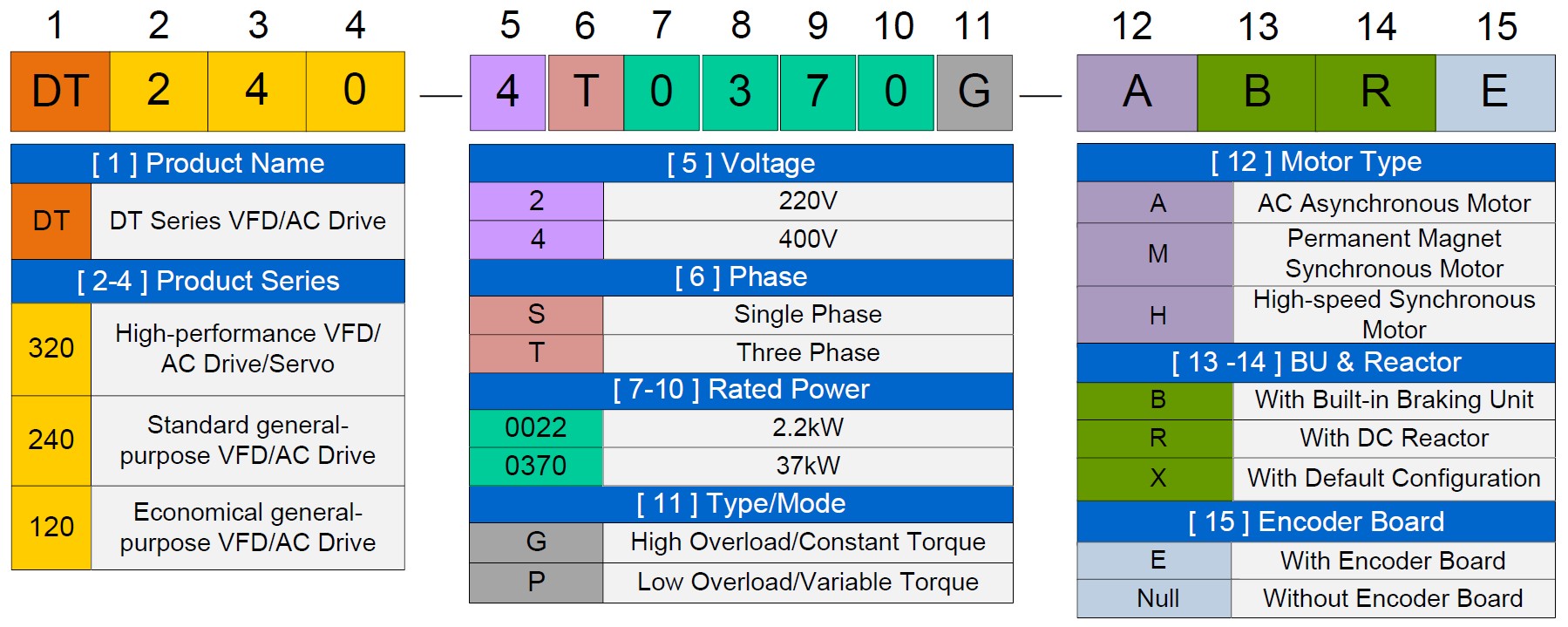

DT series VFD/AC Drive Model Order Number

The product model number is the unique order number of the product. It includes the series type, rated power, rated voltage, optional accessories and other key information.

DT Order Number.jpg

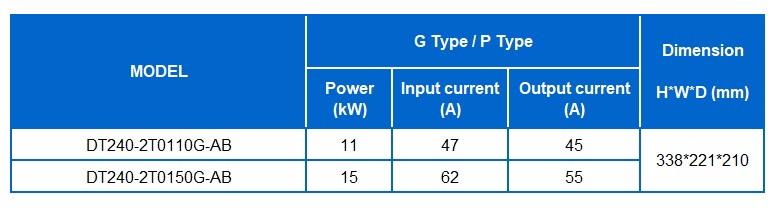

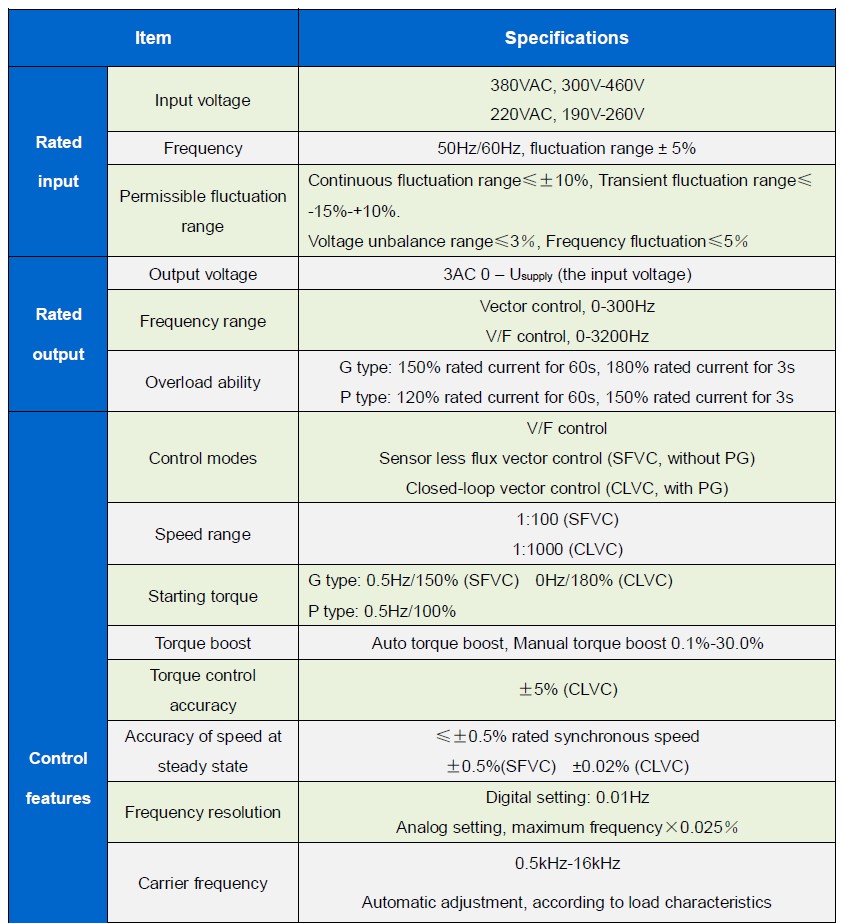

DT240 series VFD/AC Drive Technical Data

DT240 data.jpg

Typical Applications
